mtd lawn tractors 820
![]() | 1979 - 1980
Garten Traktor | 1979 - 1980 | Gartenfahrzeug |
|---|---|---|---|
1979 - 1980 | |||
Gartenfahrzeug | |||
1979 - 1980 | |
|---|---|
Gartenfahrzeug |
Produktion | |
|---|---|
Hersteller | MTD |
Gartenfahrzeug | |
Der ursprüngliche Preis betrug 1.499 $ im Jahr 1979 | |
Varianten | |
|---|---|
810 | 3-Gang |
820 | 4-Gang |
MTD 820 Motor | |
|---|---|
16 PS Briggs & Stratton 655cc 2-Zylinder-Benzinmotor | |
Motordetails ... |

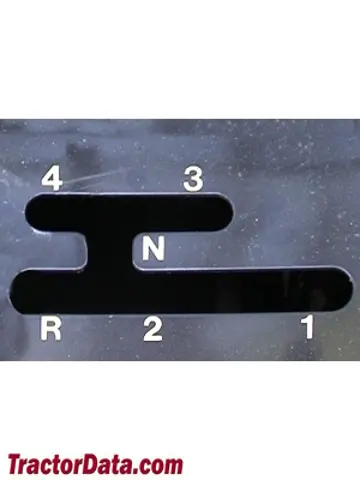

MTD 820 Getriebe | |
|---|---|
4-Gang-Getriebe | |
Getriebe Details ... |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Offene Bedienstation. |
Fotos | |
|---|---|
![]() | |
MTD 820 Fotos... |
Traktoranbausystem | |
|---|---|
Typ | Schleppheck OptOptional |
Kraftentnahme (PTO) | |
|---|---|
Mittel PTO | unabhängig |
Kupplung | manuell |
Abmessungen & Reifen | |
|---|---|
Vollständige Abmessungen und Reifen ... |
MTD 820 Anbaugeräte | |
|---|---|
44" Mähdeck, mittig montiert | |
Schneeschleuder | |
Messer | |
Befestigungsdetails ... |

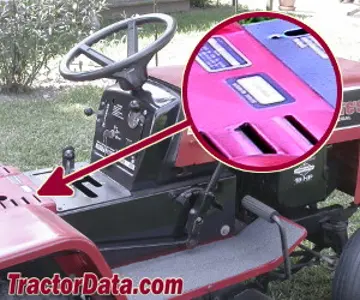

820 Seriennummernstandort | |
|---|---|
![]() | |
Seriennummernaufkleber an der Vorderkante der hinteren Kotflügelabdeckung, unterhalb des Sitzes. |
820 Seriennummern | |
|---|---|
1979 | 149-820A (Modellcode) |
1980 | 140-820A (Modellcode) |
FAQ: Wie liest man eine Seriennummerntabelle? | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
![]() | |
Bedienungsanleitung Modell Nr. 149-820A (770-8596) veröffentlicht 1979 | |
Rasen- und Gartentraktor-Zubehör veröffentlicht im Jahr 1980, von MTD | |
Rasen- & Gartentraktor-Zubehör veröffentlicht 1984, von MTD | |
MTD Teile Explosionszeichnungen (770-0273) veröffentlicht im Jahr 1980 | |
Handbuch für Teile und Service (770-1737), veröffentlicht im Jahr 1982 |
