new holland t9 560
 | 2011 - 2014
T9-SerieVierradantrieb (4WD)-Traktor | 2011 - 2014 | T9-Serie | Vierradantriebs-Traktor (4WD) |
|---|---|---|---|---|
2011 - 2014 | ||||
T9-Serie | ||||
Vierradantriebs-Traktor (4WD) | ||||
2011 - 2014 | |
|---|---|
T9-Serie | |
Vierradantriebs-Traktor (4WD) |
Produktion | |
|---|---|
Hersteller | New Holland |
Vierradantriebs-Traktor (4WD) | |
Gebaut in Fargo, North Dakota, USA | |
New Holland T9.560 Motor | |
|---|---|
FPT 12,9L 6-Zylinder-Diesel | |
Kraftstofftank | 325 Gallonen
1230.1 Liter |
Abgasfluid (DEF) | 46 Gallonen
174.1 L |
Motordetails ...  | |
New Holland T9.560 Getriebe | |
|---|---|
16-Gang-Leistungswechsel | |
Getriebe Details ...  |
New Holland T9.560 Power | |
|---|---|
Motor | 507 PS
378.1 kW |
Anhängevorrichtung (geprüft) | 392,34 PS
292,6 kW |
Kraftübertragung (geprüft) | 499,16 PS
372,2 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Allradantrieb | |
Hydraulische Scheibenbremsen | |
Kabinenstandard. |
Fotos | |
|---|---|
 | |

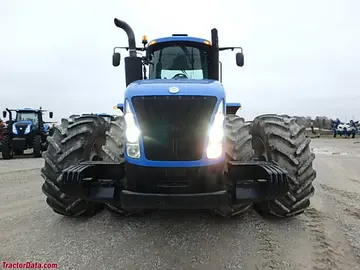

New Holland T9.560 Fotos...  |
Hydraulik | |
|---|---|
Typ | geschlossenes Mittelkreis-Lastschaltventil |
Druck | 2000 psi
137,9 bar |
Heckventile | 4 bis 8 |
Pumpenleistung | 45 GPM
170,3 LPM |
Gesamtstrom | 42 gpm
159,0 lpm |
| 57 gpm
215,7 lpm |
| 98 gpm (MegaFlow)
370,9 lpm |
| 113 gpm (MegaFlow)
427,7 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | 4N/3 |
Heckhub (bei 24"/610mm) | 20.000 lbs
9072 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | optional |
Heck-PTO Typ | 1000 (1-3/4) |
Abmessungen & Reifen | |
|---|---|
Radstand | 148 Zoll
375 cm |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 200 |
Batterien | 2 |
Batterie CCA | 1000 |
Batteriespannung | 12 |
