new holland tl90
 | 1999 - 2004
TL SeriesUtility tractor | 1999 - 2004 | TL Series | Utility tractor |
|---|---|---|---|---|
1999 - 2004 | ||||
TL Series | ||||
Utility tractor | ||||
1999 - 2004 | |
|---|---|
TL Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | New Holland |
Utility tractor | |
Built in Jesi, Italy | |
New Holland TL90 Engine | |
|---|---|
Iveco 3.9L 4-cyl diesel | |
Fuel tank | 33.5 gal
126.8 L |
Engine details ...  | |
New Holland TL90 Transmissions | |
|---|---|
12-speed | |
24-speed | |
Transmission details ...  |
New Holland TL90 Power | |
|---|---|
Engine | 90 hp
67.1 kW |
PTO (claimed) | 76 hp
56.7 kW |
PTO (tested) | 81.5 hp
60.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. | |
Photos | |
|---|---|
 | |

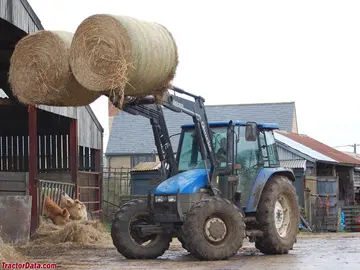

New Holland TL90 photos...  |
Hydraulics | |
|---|---|
Type | open |
Valves | 2 or 3 |
Pump flow | 14.5 gpm
54.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 6550 lbs
2971 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.2 inches (2WD)
234 cm |
| 91.1 inches (4WD)
231 cm |
Weight | 6834 to 8585 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 540/65R-34 |
Full dimensions and tires ...  | |
TL90 Serial Numbers | |
|---|---|
Location: | Serial number stamped on the front axle support under the tractor hood. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
