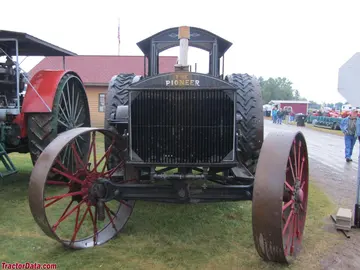

pioneer tractor 30
 | 1910 - 1927
Standard-Profil-Traktor | 1910 - 1927 | Standard-Profil-Traktor |
|---|---|---|---|
1910 - 1927 | |||
Standard-Profil-Traktor | |||
1910 - 1927 | |
|---|---|
Standard-Profil-Traktor |
Produktion | |
|---|---|
Hersteller | Pioneer-Traktor |
Standard-Profil-Traktor | |
Gebaut in Winona, Minnesota, USA | |
Pioneer-Traktor 30 Motor | |
|---|---|
Pioneer Traktor 20,2L 4-Zylinder Benzin | |
Kraftstofftank | 90 Gallonen
340.7 L |
Hilfsstoff | 15 gal
56,8 L |
Motordetails ...  | |
Pioneer Traktor 30 Getriebe | |
|---|---|
3-Gang-Getriebe | |
Getriebe Details ...  |
Pioneer Traktor 30 Leistung | |
|---|---|
Anhängerkupplung (angegeben) | 30 PS
22,4 kW |
Riemen (angegeben) | 60 PS
44,7 kW |
Pflüge | 10 (35,56 cm) |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Lenkung | manuell |
Kabine Standard mit gepolstertem Sitz. | |
Fotos | |
|---|---|
 | |
Pioneer Traktor 30 Fotos...  |
Abmessungen & Reifen | |
|---|---|
Radstand | 156 Zoll
396 cm |
Gewicht | 23600 lbs
10704 kg |
Hinterreifen | 96x24 |
Vollständige Abmessungen und Reifen ...  | |
Links | |
|---|---|
Pioneer 30-60: Restaurierung eines Pioneer 30-60 bei Gas Engine Magazine |
Riemenscheibe | |
|---|---|
Durchmesser | 45 cm
18 Zoll |
Breite | 15 Zoll
38 cm |
Drehzahl | 625 |
Geschwindigkeit | 861.67 Meter/Minute
2827 Fuß/Minute |
