satoh s750
 | 1977 - 1984 | 1977 - 1984 |
|---|---|---|
1977 - 1984 | ||
1977 - 1984 |
|---|
Produktion | |
|---|---|
Hersteller | Satoh |
Gebaut in Japan | |
Varianten | |
|---|---|
S750D | 2WD |
S750DD | 4x4 |
Satoh S750 Motor | |
|---|---|
Isuzu 1,8L 3-Zylinder Diesel | |
Motordetails ...  |
Satoh S750 Getriebe | |
|---|---|
9-Gang | |
Getriebe Details ...  |
Satoh S750 Leistung | |
|---|---|
Motor | 38 PS
28,3 kW |
Zwillingskupplung (angegeben) | 33 PS
24,6 kW |
Anhängevorrichtung (geprüft) | 26,71 PS
19,9 kW |
Kraftübertragung (geprüft) | 33,45 PS
18,5 kW |

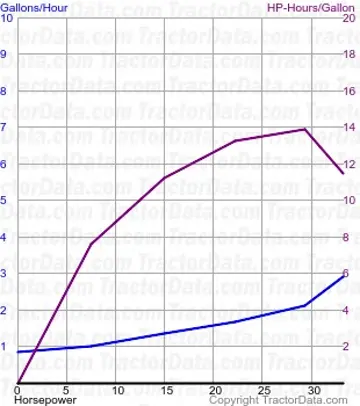

Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Fahren | 4x2 2WD |
| 4x4 MFWD 4WD (S750DD) |
Lenkung | Leistungsunterstützung |
Differentialmechanische expandierende Backenbremsen | |
Offene Fahrerkabine. Zweisäuliger ROPS verfügbar. | |
Kapazität | |
|---|---|
Kraftstoff | 12 gal
45,4 L |
2WD Hydrauliksystem | 5,3 gal
20,1 L |
Hydraulisches 4WD-System | 6,2 Gal
23,5 L |
Hydraulik | |
|---|---|
2WD-Kapazität | 5,3 gal
20,1 L |
4WD-Kapazität | 6,2 Gal
23,5 L |
Druck | 2060 psi
142,0 bar |
Pumpenleistung | 9,5 gpm
36,0 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Steuerung | Position und Zugkontrolle |
Heckhub (an den Enden) | 3240 lbs
1469 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | live (Kupplung in zwei Stufen) |
Heck-PTO Typ | 540 (1,375) |
Abmessungen & Reifen | |
|---|---|
Radstand 2WD | 71,5 Zoll
181 cm |
4x4 Radstand | 73,6 Zoll
186 cm |
Gewicht | 3142 bis 3900 Pfund |
Vorderreifen | 6,00-16 |
2WD Hinterreifen | 13,6-28 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Batterie Ah | 70 |
