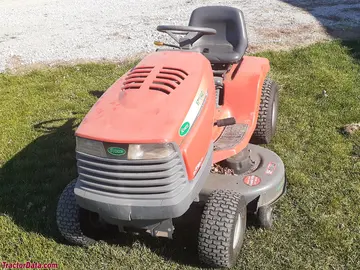

scotts lawn tractors s1742
 | 1999 - 2001
Lawn tractorJohn Deere built | 1999 - 2001 | Lawn tractor | John Deere built |
|---|---|---|---|---|
1999 - 2001 | ||||
Lawn tractor | ||||
John Deere built | ||||
1999 - 2001 | |
|---|---|
Lawn tractor | |
John Deere built |
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Scotts S1742 Engine | |
|---|---|
17HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Scotts S1742 Transmission | |
|---|---|
5-speed unsynchronized gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Scotts S1742 photos...  |
Dimensions & Tires | |
|---|---|
Weight | 388 lbs
175 kg |
Front tire | 15x6.50-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Scotts S1742 attachments | |
|---|---|
42" mid-mount mower deck | |
Attachment details ...  |
S1742 Serial Numbers | |
|---|---|
Location: | Serial number plate on fender deck under seat. |
1999 | 010001 |
2000 | 035001 |
2001 | 120001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 190 |
Battery volts | 12 |
Battery Group | BCI Group U1 |
References | |
|---|---|
 | |
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10342) published in 1998 | |
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10784 ) |
