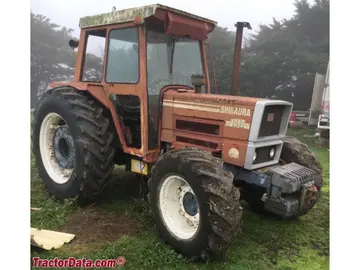

shibaura sf1040t
![]() | SF-Serien-Nutzfahrzeugtraktor | SF-Serie | Bauwagen |
|---|---|---|---|
SF-Serie | |||
Bauwagen | |||
SF-Serie | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | Shibaura |
Bauwagen | |
Gebaut in Matsumoto, Japan | |
Varianten | |
|---|---|
SF1000T | 2WD |
SF1040T | 4x4 |
Shibaura SF1040T Motor | |
|---|---|
Shibaura 4,6L 4-Zylinder-Diesel | |
Motordetails ... |
Shibaura SF1040T Getriebe | |
|---|---|
16-Gang-Zahnradschaltung | |
Getriebe Details ... |
Shibaura SF1040T Leistung | |
|---|---|
Motor | 105 PS
78,3 kW |
Zwillingskupplung (angegeben) | 96 PS
71,6 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Servolenkung | |
Mechanische Naßscheibenbremsen | |
Offene Fahrerkabine. Zweisäuliger ROPS verfügbar. |
Fotos | |
|---|---|
![]() | |
Shibaura SF1040T Fotos... |
Kapazität | |
|---|---|
Kraftstoff | 26,4 Gallonen
99,9 L |
Hydrauliksystem | 6,6 Gallonen
25,0 Liter |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 6,6 Gallonen
25,0 Liter |
Druck | 2900 psi
200,0 bar |
Pumpenleistung | 9.3 gpm
35.2 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Steuerung | Position und Zugkontrolle |
Hecklift | 5512 lbs
2500 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/800/1000 |
Abmessungen & Reifen | |
|---|---|
Gewicht | 7915 lbs
3590 kg |
Vorderreifen | 12.4-24 |
Hinterreifen | 18,4-34 |
Vollständige Abmessungen und Reifen ... | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 30 |
Batteriespannung | 12 |
Batterie Ah | 170 |
Referenzen | |
|---|---|
![]() | |
SE5300 - SE6300 - SE7300T - SE8300 - SF1000T veröffentlicht im Jahr 1983, von Shibaura |
