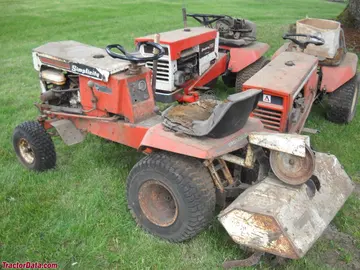

simplicity lawn tractors broadmoor 5008
 | 1974 - 1976
Broadmoor SeriesGarden tractor | 1974 - 1976 | Broadmoor Series | Garden tractor |
|---|---|---|---|---|
1974 - 1976 | ||||
Broadmoor Series | ||||
Garden tractor | ||||
1974 - 1976 | |
|---|---|
Broadmoor Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
The 5008 Broadmoor carried Simplicity model number 1690008. | |
Variants | |
|---|---|
608 | similar Allis Chalmers model |
Simplicity Broadmoor 5008 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 0.875 gal
3.3 L |
Engine details ...  | |
Simplicity Broadmoor 5008 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
External band brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
Simplicity Broadmoor 5008 photos...  |
Dimensions & Tires | |
|---|---|
Wheelbase | 42.65 inches
108 cm |
Weight | 336 to 423 pounds |
Front tire | 5.30/4.50-6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Simplicity Broadmoor 5008 attachments | |
|---|---|
36" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
