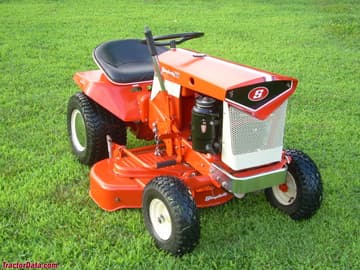

simplicity lawn tractors broadmoor 717
 | 1968
Broadmoor SeriesLawn tractor | 1968 | Broadmoor Series | Lawn tractor |
|---|---|---|---|---|
1968 | ||||
Broadmoor Series | ||||
Lawn tractor | ||||
1968 | |
|---|---|
Broadmoor Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $599 in 1968 | |
Variants | |
|---|---|
990425 | electric start |
990424 | recoil start |
Simplicity Broadmoor 717 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Engine details ...  |
Simplicity Broadmoor 717 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Simplicity Broadmoor 717 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 410 lbs
185 kg |
Front tire | 5.30x6 |
Rear tire | 9.50x8 |
Full dimensions and tires ...  | |
Simplicity Broadmoor 717 attachments | |
|---|---|
36" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Improve your lot in life published in 1968, by Simplicity |
