simplicity lawn tractors conquest 23 54
 | 2006 - 2009
Conquest SeriesGarden tractor | 2006 - 2009 | Conquest Series | Garden tractor |
|---|---|---|---|---|
2006 - 2009 | ||||
Conquest Series | ||||
Garden tractor | ||||
2006 - 2009 | |
|---|---|
Conquest Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Garden tractor | |
Original price was $6,150 in 2009 | |
Simplicity Conquest 23/54 Engine | |
|---|---|
23HP Vanguard 626cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Conquest 23/54 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Disc brakes | |
Open operator station with 18-inch adjustable seat. | |
Photos | |
|---|---|
 | |

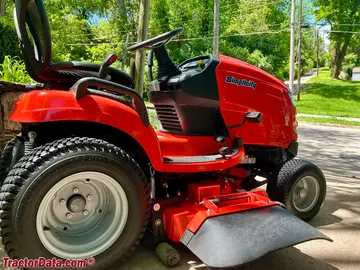

Simplicity Conquest 23/54 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 53 inches
134 cm |
Weight | 711 lbs
322 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Simplicity Conquest 23/54 attachments | |
|---|---|
54" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Prestige / 1800 / 2800 / 500 Series, Conquest / 1700 / 2700 / 400 Series (1735106) published in 2010 | |
Product Guide 2008 published by Simplicity |
