simplicity lawn tractors landlord 2010
 | 1967
Landlord SeriesGarden tractor | 1967 | Landlord Series | Garden tractor |
|---|---|---|---|---|
1967 | ||||
Landlord Series | ||||
Garden tractor | ||||
1967 | |
|---|---|
Landlord Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Variants | |
|---|---|
990395 | mechanical lift |
990396 | hydraulic lift |
Simplicity Landlord 2010 Engine | |
|---|---|
10HP Briggs & Stratton 392cc 1-cyl gasoline | |
Engine details ...  |
Simplicity Landlord 2010 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |

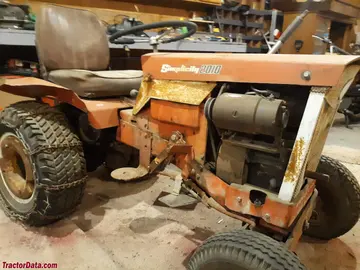

Simplicity Landlord 2010 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.5 inches
113 cm |
Weight | 680 lbs
308 kg |
Front tire | 4.80-8 |
Rear tire | 8.50-12 |
Full dimensions and tires ...  | |
Simplicity Landlord 2010 attachments | |
|---|---|
42" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
the new look of Simplicity action '67 published in 1967 |
