simplicity lawn tractors legacy 25
 | 1998 - 2003
Legacy SeriesGarden tractor | 1998 - 2003 | Legacy Series | Garden tractor |
|---|---|---|---|---|
1998 - 2003 | ||||
Legacy Series | ||||
Garden tractor | ||||
1998 - 2003 | |
|---|---|
Legacy Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price | $8,525 (1998 ) |
$10,100 (2001 ) | |
Variants | |
|---|---|
2925H | similar Massey Ferguson model |
2025H | similar AGCO model |
Simplicity Legacy 25 Engine | |
|---|---|
25HP Kohler 726cc 2-cyl gasoline | |
Fuel tank | 6 gal
22.7 L |
Engine details ...  | |
Simplicity Legacy 25 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Power steering | |
Disc brakes | |
Open operator station. Hard-side weather cab optional. Two-post ROPS available. | |
Photos | |
|---|---|
 | |
Simplicity Legacy 25 photos...  |
Hydraulics | |
|---|---|
Pressure | 950 psi
65.5 bar |
Pump flow | 3 gpm
11.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Rear lift | 450 lbs
204 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Clutch | electric |
Rear PTO Type | 540 (1.375) |
| 2000 (1.0) |
Front PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 55 inches
139 cm |
Weight | 802 lbs
363 kg |
Front tire | 18x8.5-8 |
Rear tire | 26x12-12 |
Full dimensions and tires ...  | |
Simplicity Legacy 25 attachments | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
snowblower | |
blade | |

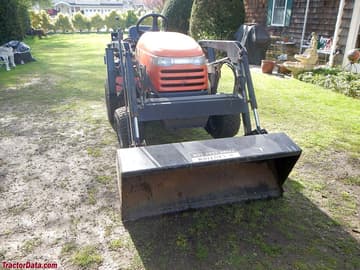

front-end loader | |
backhoe | |
Attachment details ...  |
Legacy 25 Serial Numbers | |
|---|---|
Location: | Left side of tractor frame, ahead of operator platform. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery CCA | 500 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn & Garden Equipment published in 1998, by Simplicity | |
The way to a beautiful lawn. published in 2000, by Simplicity | |
The Way To A Beautiful Lawn published in 2003, by Simplicity | |
Product Guide Fall 1998 published by Simplicity | |
Product Guide Spring 1999 published by Simplicity | |
Product Guide 2000 published by Simplicity | |
Product Guide Fall 2001 published by Simplicity | |
Product Guide 2003 published by Simplicity | |
Legacy Commercial Garden Tractor published in 1997, by Simplicity | |
Operator's Manual Legacy / 2000 / 2900 Series (1717573) published in 2003 | |
2002 Product Specifications published by Simplicity |
