snapper lawn tractors 1650
 | 1979 - 1984
Garden tractor | 1979 - 1984 | Garden tractor |
|---|---|---|---|
1979 - 1984 | |||
Garden tractor | |||
1979 - 1984 | |
|---|---|
Garden tractor |
Production | |
|---|---|
Manufacturer | Snapper |
Garden tractor | |
Built in Fort Worth, Texas, USA | |
Variants | |
|---|---|
1650A | hitch and PTO |
1650 | similar Massey Ferguson model |
Snapper 1650 Engine | |
|---|---|
16HP Kohler 588cc 1-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Snapper 1650 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Snapper 1650 photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Rear lift (at ends) | 650 lbs
294 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 2000 |
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 860 to 950 pounds |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Snapper 1650 attachments | |
|---|---|
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

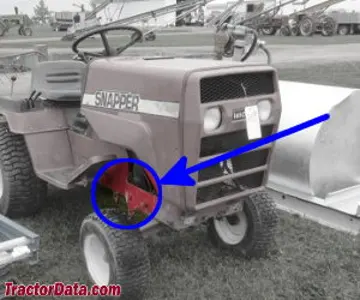

1650 Serial Number Location | |
|---|---|
 | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Garden Tractors published in 1981, by Snapper | |
Service manual for 1600, 1650, 1855 Series (07005) | |
Operator's manual for Model 1650, 1650A (1-3016) published in 1979 | |
How to get the most for your money. published in 1980, by Snapper | |
Discover the Difference published in 1983, by Snapper |
