snapper lawn tractors yt12
 | 1989 - 1990
Mähwerkzeug | 1989 - 1990 | Rasen-Traktor |
|---|---|---|---|
1989 - 1990 | |||
Rasen-Traktor | |||
1989 - 1990 | |
|---|---|
Rasen-Traktor |
Produktion | |
|---|---|
Hersteller | Snapper |
Rasen-Traktor | |
Varianten | |
|---|---|
YT1233 | 33-Zoll-Deck |
YT1241 | 41-Zoll-Deck |

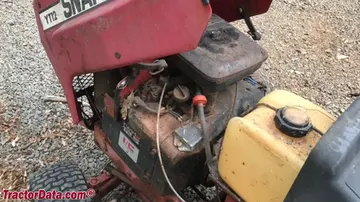

Snapper YT12 Motor | |
|---|---|
12,5 PS Briggs & Stratton 655cc 2-Zylinder-Benzinmotor | |
Kraftstofftank | 1,25 Gallonen
4,7 Liter |
Motordetails ...  | |
Snapper YT12 Getriebe | |
|---|---|
12-Gang Scheibenbremse | |
Getriebe Details ...  |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Manuelle Lenkung | |
Mechanische Bandbremsen | |
Offene Bedienstation. |

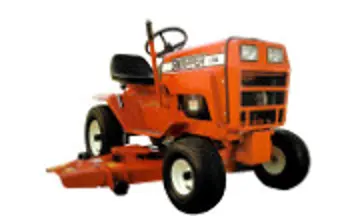

Fotos | |
|---|---|
 | |
Snapper YT12 Fotos...  |
Kraftentnahme (PTO) | |
|---|---|
Frontkraftheber | unabhängig |
Kupplung | elektromagnetisch |
Abmessungen & Reifen | |
|---|---|
Radstand | 121 cm |
Vorderreifen | 15x6.00-6 |
Hinterreifen | 21x7,00-10 |
Vollständige Abmessungen und Reifen ...  | |
Snapper YT12 Zubehör | |
|---|---|
33" Mittelbau-Mähdeck | |
41-Zoll Mittelaufbau-Mähdeck | |
Messer | |
Befestigungsdetails ...  |
YT12 Seriennummern | |
|---|---|
Standort: | Seriennummer-Aufkleber auf dem hinteren Kotflügeldeck des Traktors, hinter dem Sitz. |
Elektrisch | |
|---|---|
Boden | negativ |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
Rear engine riding mowers veröffentlicht 1990, von Snapper |
