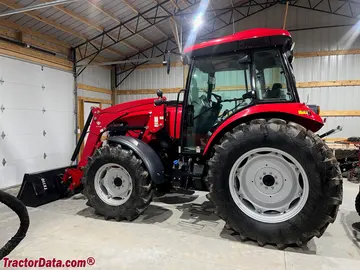

tym t1104
 | 2019 -
Nutzfahrzeugtraktor | 2019 - | Bauwagen |
|---|---|---|---|
2019 - | |||
Bauwagen | |||
2019 - | |
|---|---|
Bauwagen |
Produktion | |
|---|---|
Hersteller | TYM |
Bauwagen | |
TYM T1104 Motor | |
|---|---|
Doosan 3,4L 4-Zylinder-Diesel | |
Kraftstofftank | 29,1 Gallonen
110,1 L |
Abgasfluid (DEF) | 5,3 gal
20,1 L |
Motordetails ...  | |
TYM T1104 Getriebe | |
|---|---|
32-Gang-Power-Shuttle | |
Getriebe Details ...  |
TYM T1104 Power | |
|---|---|
Motor (grobe Leistung) | 105 PS
78,3 kW |
Zwillingskupplung (angegeben) | 95,5 PS
71,2 kW |
Mechanisch | |
|---|---|
Servolenkung | |
Nassbremsen | |
Führerhaus Standard mit Klimaanlage. |
Fotos | |
|---|---|
 | |
TYM T1104 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Pumpenleistung | 15,6 gpm
59,0 lpm |
Gesamtstrom | 22,7 gpm
85,9 lpm |
Lenkungsfluss | 7,1 gpm
26,9 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Heckhub (an den Enden) | 6860 lbs
3111 kg |
Heckhub (bei 24"/610mm) | 5490 lbs
2490 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 (1,375) |
Abmessungen & Reifen | |
|---|---|
Radstand | 90,6 Zoll
230 cm |
Gewicht | 8666 lbs
3930 kg |
Vollständige Abmessungen und Reifen ...  | |
TYM T1104 Anbaugeräte | |
|---|---|
Frontlader | |
Befestigungsdetails ...  |
Elektrisch | |
|---|---|
Boden | negativ |
Ladeampere | 110 |
Batteriespannung | 12 |
