versatile 846
![]() | 1988 - 1993
6 SerieAllradtraktor (4WD) | 1988 - 1993 | 6er Serie | Vierradantriebs-Traktor (4WD) |
---|---|---|---|---|
1988 - 1993 | ||||
6er Serie | ||||
Vierradantriebs-Traktor (4WD) |
1988 - 1993 | |
---|---|
6er Serie | |
Vierradantriebs-Traktor (4WD) |
Produktion | |
---|---|
Hersteller | Vielseitig |
Vierradantriebs-Traktor (4WD) | |
Gebaut in Winnipeg, Manitoba, Kanada | |

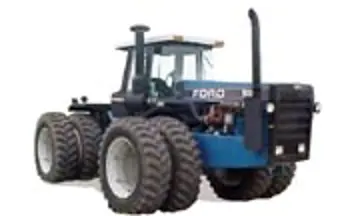

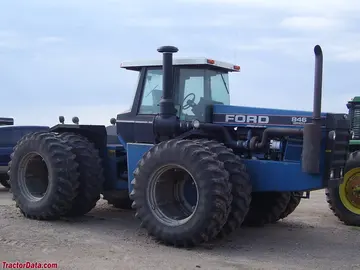

Der 846 erschien in Versatile Schwarz, Rot und Gold bis 1989; danach wurde er in Ford Blau produziert. |
Vielseitiger 846 Motor | |
---|---|
Cummins 10,0-Liter-6-Zylinder-Diesel | |
Motordetails ... ![]() |
Versatile 846 Getriebe | |
---|---|

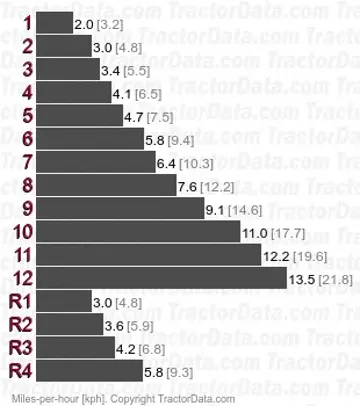

12-Gang-Verschleppung | |

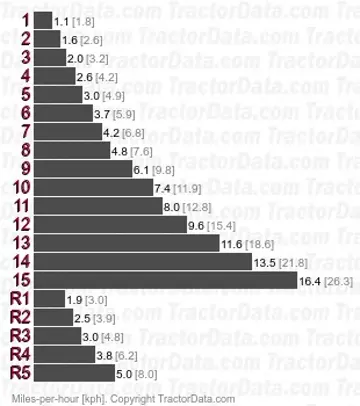

15-Gang teil synchronisiert | |
Getriebe Details ... ![]() |
Vielseitiger 846 Power | |
---|---|
Motor | 230 PS
171,5 kW |
Zwillingskupplung (angegeben) | 202 PS
111.9 kW |
Mechanisch | |
---|---|
Allradantrieb | |
Endantriebe | Außenbordplaneten |
| bordsgetriebe (Reihenanbau) |
Gelenklenkung | |
Hydraulische Scheibenbremsen | |
Führerhaus Standard mit Klimaanlage. |
Fotos | |
---|---|
![]() | |
Vielseitige 846 Fotos... ![]() |
Kapazität | |
---|---|
Kraftstoff | 246 Gallonen
931,1 L |
Hydrauliksystem | 15,3 gal
57,9 L |
Hydraulik | |
---|---|
Typ | geschlossenes Mittel-Lastmesssystem *Lenkpumpe ist offen. |
Kapazität | 15,3 gal
57,9 L |
Druck | 2250 psi
155,1 bar |
Ventile | 4 bis 5 |
Pumpenleistung | 25,2 Gallonen pro Minute
95,4 Liter pro Minute |
Lenkungsfluss | 25,9 lpm
98,0 lpm |
Lenkdruck. | 2300 psi
158,6 bar |
Traktoranbausystem | |
---|---|
Hinterer Typ | III |
| III/IVN |
Steuerung | Positionsregelung |
Heckhub (bei 24"/610mm) | 10313 Pfund (III)
4677 kg |
| 13036 lbs (IV/III)
5913 kg |
Kraftentnahme (PTO) | |
---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 1000 (1,75) |
Abmessungen & Reifen | |
---|---|
Radstand | 130 Zoll
330 cm |
Gewicht | 16329 bis 20868 Pfund |
Vollständige Abmessungen und Reifen ... ![]() |
846 Seriennummern | |
---|---|
Standort: | Seriennummernschild an der Kabinentürsäule. |
1988 | 846 88 330335 |
1989 | 846 89 D430159 |
1990 | 846 90 D450298 |
1991 | 846 91 D475001 |
1992 | 846 92 D485051 |
1993 | 846 93 D930035 |
Endgültig | 846 93 D931211 |
FAQ: Wie liest man eine Seriennummerntabelle? |
Elektrisch | |
---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 90 |
Batterien | 4 |
Batterie CCA | 625 |
Batteriespannung | 12 |
Referenzen | |
---|---|
![]() | |
846 und 876 - Bezeichnung 6 Traktoren veröffentlicht im Jahr 1987, von Versatile |
