yanmar af 24
 | 1992 - 1997
AF-Serie Kompakter Nutzfahrzeugtraktor | 1992 - 1997 | AF-Serie | Kompakt-Bau-Traktor |
|---|---|---|---|---|
1992 - 1997 | ||||
AF-Serie | ||||
Kompakt-Bau-Traktor | ||||
1992 - 1997 | |
|---|---|
AF-Serie | |
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Yanmar |
Kompakt-Bau-Traktor | |
Yanmar AF-24 Motor | |
|---|---|
Yanmar 1.4L 3-Zylinder Diesel | |
Kraftstofftank | 10 gal
37,9 L |
Motordetails ...  | |

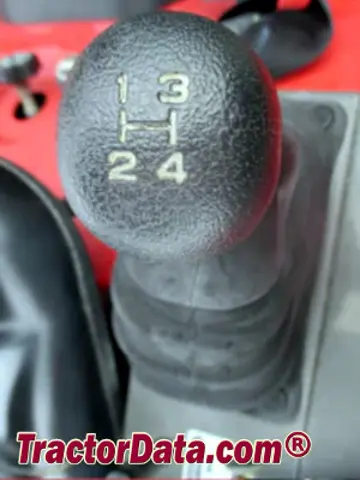

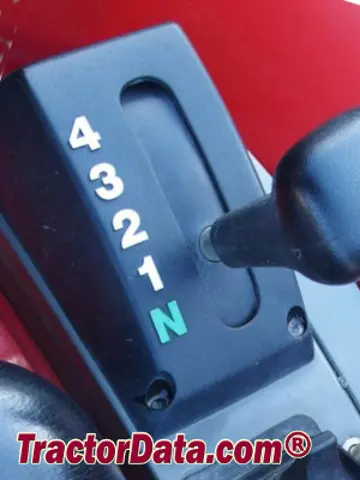

Yanmar AF-24 Getriebe | |
|---|---|
16-Gang-Shuttle | |
16-Gang-Viergang-Leistungsschaltung | |
Getriebe Details ...  |
Yanmar AF-24 Leistung | |
|---|---|
Motor | 23,7 PS
17,7 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Servolenkung | |
Zweipunkt-Überrollbügel. Kabine optional. |
Traktoranbausystem | |
|---|---|
Hinterer Typ | JIS1 |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 551@2500 |
| 756@2500 |
| 963@2500 |
| 1293@2500 |
| -694@2500 |
Abmessungen & Reifen | |
|---|---|
Radstand | 60,6 Zoll
153 cm |
Gewicht | 2601 lbs
1179 kg |
Vorderreifen | 7-14 |
Hinterreifen | 9,5-24 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 35 |
Batteriespannung | 12 |
Batterie Ah | 70 |
Referenzen | |
|---|---|
 | |
Super-Forte Mark III (198071-90015) veröffentlicht im Jahr 1992 |
