yanmar f535
 | 1989 - 1998
Power Forte Series Nutzfahrzeug-Traktor | 1989 - 1998 | Power Forte Serie | Bauwagen |
|---|---|---|---|---|
1989 - 1998 | ||||
Power Forte Serie | ||||
Bauwagen | ||||
1989 - 1998 | |
|---|---|
Power Forte Serie | |
Bauwagen |
Produktion | |
|---|---|
Hersteller | Yanmar |
Bauwagen | |
Yanmar F535 Motor | |
|---|---|
Yanmar 2,6L 3-Zylinder-Diesel | |
Kraftstofftank | 16,5 Gallonen
62,5 Liter |
Motordetails ...  | |
Yanmar F535 Getriebe | |
|---|---|
9-Gang | |

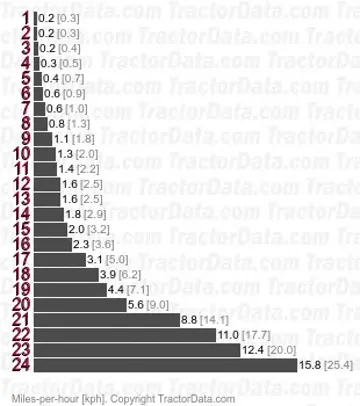

24-Gang-Shuttle | |
Getriebe Details ...  |
Yanmar F535 Leistung | |
|---|---|
Motor | 52,3 PS
39,0 kW |
Zwillingskupplung (angegeben) | 50 PS
37,3 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Servolenkung | |
Vier-Säulen-ROPS. Kabine optional. |
Hydraulik | |
|---|---|
Pumpenleistung | 8,3 gpm
31,4 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | JIS1 |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 549@2600 |
| 676@2600 |
| 798@2600 |
| 1009@2600 |
Abmessungen & Reifen | |
|---|---|
Radstand | 78,4 Zoll
199 cm |
Gewicht | 4277 lbs
1940 kg |
Vorderreifen | 8.3-20 |
Hinterreifen | 12.4-32 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 40 |
Batteriespannung | 12 |
Batterie Ah | 110 |
