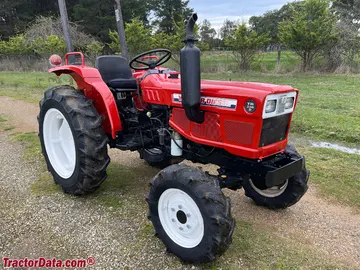

yanmar ym236
 | 1984 - ????
Kompakter Nutzfahrzeug-Traktor | 1984 - ???? | Kompakt-Bau-Traktor |
|---|---|---|---|
1984 - ???? | |||
Kompakt-Bau-Traktor | |||
1984 - ???? | |
|---|---|
Kompakt-Bau-Traktor |
Produktion | |
|---|---|
Hersteller | Yanmar |
Kompakt-Bau-Traktor | |
Yanmar YM236 Motor | |
|---|---|
Yanmar 1.0L 3-Zylinder Diesel | |
Motordetails ...  |
Yanmar YM236 Getriebe | |
|---|---|
9-Gang-Leistungswechsler | |
Getriebe Details ...  |
Yanmar YM236 Leistung | |
|---|---|
Motor | 23 PS
17,2 kW |
Zwillingskupplung (angegeben) | 20 PS
14,9 kW |
Mechanisch | |
|---|---|
Zweirad- oder Vierradantrieb | |
Zwei-Säulen-ROPS. |
Fotos | |
|---|---|
 | |
Yanmar YM236 Fotos...  |
Hydraulik | |
|---|---|
Druck | 2200 psi
151,7 bar |
Pumpenleistung | 3,8 gpm
14,4 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Heckhub (an den Enden) | 1168 lbs
529 kg |
Heckhub (bei 24"/610mm) | 816 Pfund
370 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | live |
Heck-PTO Typ | 540 (1,375) |
Abmessungen & Reifen | |
|---|---|
Gewicht | 1903 bis 2066 Pfund |
Vorderreifen | 5.00-15 |
2WD Hinterreifen | 11,5-24 |
Vollständige Abmessungen und Reifen ...  | |
