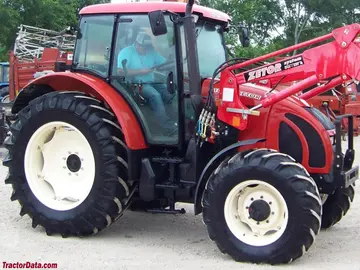

zetor 10741
 | 2004 - 2007 | 2004 - 2007 |
|---|---|---|
2004 - 2007 | ||
2004 - 2007 |
|---|
Produktion | |
|---|---|
Hersteller | Zetor |
Gebaut in Brünn, Tschechoslowakei | |
Zetor 10741 Motor | |
|---|---|
Zetor 4,2L 4-Zylinder-Diesel | |
Kraftstofftank | 48 gal
181,7 L |
Motordetails ...  | |
Zetor 10741 Getriebe | |
|---|---|
24-Gang-Dreigang-Leistungsschaltung | |
Getriebe Details ...  |
Zetor 10741 Power | |
|---|---|
Motor | 101 PS
75,3 kW |
Zwillingskupplung (angegeben) | 91 PS
67,9 kW |
Anhängevorrichtung (geprüft) | 72,7 PS
40,2 kW |
Kraftübertragung (geprüft) | 92,8 PS
69,2 kW |
Leistungsprüfung Details ...  | |
Mechanisch | |
|---|---|
Allradantrieb | |
Servolenkung | |
Hydraulische Scheibenbremsen | |
Führerhaus Standard mit Klimaanlage. |
Fotos | |
|---|---|
 | |
Zetor 10741 Fotos...  |
Hydraulik | |
|---|---|
Typ | offen mittig |
Druck | 2700 psi
186,2 bar |
Ventile | 3 |
Pumpenleistung | 19 gpm
71,9 lpm |
Gesamtstrom | 25 gpm
94,6 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II/I |
Heckhub (an den Enden) | 10800 lbs
4898 kg |
Heckhub (bei 24"/610mm) | 9300 Pfund
4218 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 |
Abmessungen & Reifen | |
|---|---|
Radstand | 94 Zoll
238 cm |
Gewicht | 9500 lbs
4309 kg |
Vorderreifen | 14.9-24 |
Hinterreifen | 18.4R-38 |
Vollständige Abmessungen und Reifen ...  | |
Zetor 10741 Anhänge | |
|---|---|
Frontlader | |
Befestigungsdetails ...  |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 70 |
Batterie CCA | 800 |
Batteriespannung | 12 |
