zetor 5243
 | 1991 - 1995
Obstgarten-/Weinbergtraktor | 1991 - 1995 | Obstgarten-/Weinbergtraktor |
|---|---|---|---|
1991 - 1995 | |||
Obstgarten-/Weinbergtraktor | |||
1991 - 1995 | |
|---|---|
Obstgarten-/Weinbergtraktor |
Produktion | |
|---|---|
Hersteller | Zetor |
Obstgarten-/Weinbergtraktor | |
Gebaut in Brünn, Tschechoslowakei | |
Zetor 5243 Motor | |
|---|---|
Zetor 2,7L 3-Zylinder-Diesel | |
Motordetails ...  |
Zetor 5243 Getriebe | |
|---|---|
10-Gang-Schaltung | |
Getriebe Details ...  |
Zetor 5243 Power | |
|---|---|
Motor | 53,6 PS
40,0 kW |
Zwillingskupplung (angegeben) | 42,5 PS
31,7 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialsperre | mechanische Hinterachse |
Servolenkung | |
Zwei-Pfosten-Mittelmontage-ROPS. Kabine verfügbar. | |

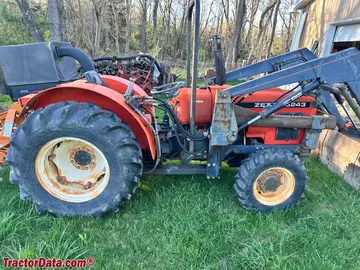

Fotos | |
|---|---|
 | |
Zetor 5243 Fotos...  |
Kapazität | |
|---|---|
Kraftstoff | 10,3 Gallonen
39,0 Liter |
Hydrauliksystem | 10 gal
37,9 L |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 10 gal
37,9 L |
Ventile | 1 |
Pumpenleistung | 8,5 gpm
32,2 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Hecklift | 3820 lbs
1732 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540 (1,375) |
Motordrehzahl | 540@1994 |
Abmessungen & Reifen | |
|---|---|
Radstand | 77,8 Zoll
197 cm |
Gewicht | 4539 bis 4900 Kilogramm |
Vorderreifen | 7,50-16 |
Hinterreifen | 14.9-24 |
Vollständige Abmessungen und Reifen ...  | |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Lichtmaschine |
Ladeampere | 55 |
Batteriespannung | 12 |
Referenzen | |
|---|---|
 | |
5213 - 5243 veröffentlicht 1991 von Zetor |
