zetor 5745
 | 1972 - 1978
UR1 7 Serie | 1972 - 1978 | UR1 7 Serie |
|---|---|---|---|
1972 - 1978 | |||
UR1 7 Serie | |||
1972 - 1978 | |
|---|---|
UR1 7 Serie |
Produktion | |
|---|---|
Hersteller | Zetor |
Gebaut in Brünn, Tschechoslowakei | |
Varianten | |
|---|---|
5711 | 2WD |
5718 | 2WD Kabine |
5745 | 4x4 |
5748 | Allradkabine |
Zetor 5745 Motor | |
|---|---|
Zetor 3.1L 4-Zylinder-Diesel | |
Kraftstofftank | 18,5 Gallonen
70,0 Liter |
Motordetails ...  | |
Zetor 5745 Getriebe | |
|---|---|
10-Gang | |
20-Gang-Teillastschaltung | |
Getriebe Details ...  |
Zetor 5745 Power | |
|---|---|
Motor | 58 PS
43,3 kW |
Zwillingskupplung (angegeben) | 54 PS
40,3 kW |
Mechanisch | |
|---|---|
Allradantrieb | |
Differentialhydraulische Trommelbremsen | |
Anhängerbremsen | pneumatisch optional |
Offene Bedienstation. | |

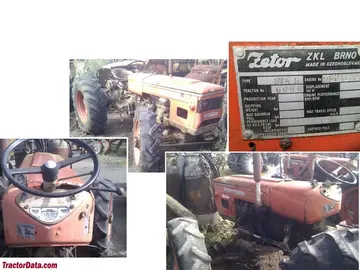

Fotos | |
|---|---|
 | |
Zetor 5745 Fotos...  |
Hydraulik | |
|---|---|
Typ | Zetormatic |
Druck | 2321 psi
160,0 bar |
Ventile | 1 |
Pumpenleistung | 5,3 gpm
20,1 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | II |
Heckhub (an den Enden) | 3850 lbs
1746 kg |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | unabhängig |
Heck-PTO Typ | 540/1000 |
Motordrehzahl | 540@2000 |
| 1000@2050 |
Abmessungen & Reifen | |
|---|---|
Radstand | 88 Zoll
223 cm |
Gewicht | 5780 lbs
2621 kg |
Vorderreifen | 9,5-24 |
Hinterreifen | 12.4-36 |
Vollständige Abmessungen und Reifen ...  | |
Referenzen | |
|---|---|
 | |
5711 - 5745 veröffentlicht 1972 von Zetor |
