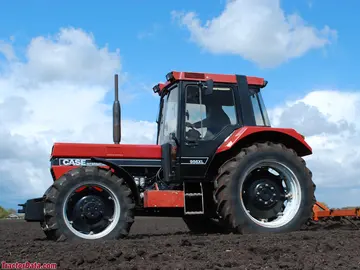

caseih 956 xl
![]() | 1985 - 1992
Tráctor utilitario | 1985 - 1992 | Tractor utilitario |
|---|---|---|---|
1985 - 1992 | |||
Tractor utilitario | |||
1985 - 1992 | |
|---|---|
Tractor utilitario |
Producción | |
|---|---|
Fabricante | CaseIH |
Tractor utilitario | |
Construido en Neuss, Alemania | |
CaseIH 956 XL Motor | |
|---|---|
International Harvester 5.9L 6 cilindros diésel | |
Detalles del motor ... |
Transmisión CaseIH 956 XL | |
|---|---|
16 velocidades | |
Detalles de la transmisión ... |
CaseIH 956 XL Power | |
|---|---|
Motor | 95 hp
70,8 kW |
Mecánico | |
|---|---|
Tracción en dos o cuatro ruedas | |
Dirección asistida | |
Frenos de disco húmedos | |
Estándar con calefacción. Aire acondicionado opcional. |
Fotos | |
|---|---|
![]() | |
Fotos de CaseIH 956 XL... |
Hidráulicos | |
|---|---|
Presión | 2538 psi
175,0 bar |
Válvulas | hasta 3 |
Caudal de la bomba | 11,4 gpm
43,1 lpm |
Enganche de tractor | |
|---|---|
Tipo Trasero | II |
Control | posición y control de profundidad |
Elevación trasera | 9532 lbs
4323 kg |
| 11530 lbsOptOpcional
5230 kg |
Toma de fuerza (PTO) | |
|---|---|
Tipo de PTO trasero | 540/1000 |
Dimensiones y Neumáticos | |
|---|---|
Distancia entre ejes 2WD | 103.5 pulgadas
262 cm |
Tracción 4x4 Distancia entre ejes | 102 pulgadas
259 cm |
Peso | 9458 a 10300 libras |
Neumático delantero | 7.50-20 |
Neumático trasero | 16.9R38 (2WD) |
Dimensiones y neumáticos completos... | |
Eléctrica | |
|---|---|
Suelo | negativo |
Sistema de carga | alternador |
Amperaje de carga | 55 |
Voltaje de la batería | 12 |
Referencias | |
|---|---|
![]() | |
856XL - 956LX - 1056XL publicado por CaseIH | |
856XL - 956LX - 1056XL publicado en 1985, por CaseIH |
