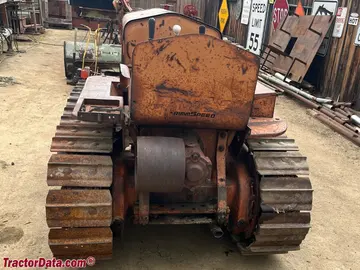

cletrac ag
 | 1936 - 1942
Tractor oruga agrícola | 1936 - 1942 | Tractor oruga agrícola |
|---|---|---|---|
1936 - 1942 | |||
Tractor oruga agrícola | |||
1936 - 1942 | |
|---|---|
Tractor oruga agrícola |
Producción | |
|---|---|
Fabricante | Cletrac |
Tractor oruga agrícola | |
Construido en Cleveland, Ohio, EE. UU. | |
Variantes | |
|---|---|
AD | diésel |
AG | gasolina |
AGH | ladera |
Motor Cletrac AG | |
|---|---|
Herclues 3.7L 4 cilindros gasolina | |
Tanque de combustible | 18 gal
68,1 L |
Detalles del motor ...  | |
Transmisión Cletrac AG | |
|---|---|
engranaje de 3 velocidades | |
Detalles de la transmisión ...  |
Cletrac AG Power | |
|---|---|
Arados | 3 (14 pulgadas) |
Enganche (probado) | 24,44 hp
18,2 kW |
Cinturón (probado) | 30.25 cv
22.6 kW |
Detalles de la prueba de rendimiento...  | |
Mecánico | |
|---|---|
Conducir | rastreador |
Dirección | embrague mecánico |
Estación de operador abierta. | |
Fotos | |
|---|---|
 | |
Fotos de Cletrac AG...  |
Dimensiones y Orugas | |
|---|---|
Peso | 6800 lbs
3084 kg |
orugas de 30.48 centímetros | |
Dimensiones completas y orugas...  | |
Números de serie AG | |
|---|---|
1936 | 14552 |
1937 | 18422 |
1938 | 2X0202 |
Preguntas frecuentes: Cómo leer una tabla de números de serie. | |
Polea de Correas | |
|---|---|
Diámetro | 10.5 pulgadas
26 cm |
Ancho | 8.5 pulgadas
21 cm |
RPM | 1275 |
Velocidad | 3500 pies/min
1066.80 metros/min |
