craftsman lawn tractors 502 25563
 | 1985 - 1986
Riding lawn mowerMurray built | 1985 - 1986 | Riding lawn mower | Murray built |
|---|---|---|---|---|
1985 - 1986 | ||||
Riding lawn mower | ||||
Murray built | ||||
1985 - 1986 | |
|---|---|
Riding lawn mower | |
Murray built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Murray |
Riding lawn mower | |
Original price was $1,000 in 1985 | |
Craftsman 502.25563 Engine | |
|---|---|
8HP 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Craftsman 502.25563 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 309 lbs
140 kg |
Front tire | 10x3.5 |
Rear tire | 15x6.0 |
Full dimensions and tires ...  | |
Craftsman 502.25563 attachments | |
|---|---|
30" mid-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

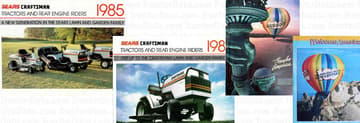

References | |
|---|---|
 | |
Craftsman Tractors and Rear Engine Riders published in 1985, by Sears | |
Craftsman Tractors and Rear Engine Riders published in 1985, by Sears | |
Fall/Winter Catalog published in 1986, by Sears | |
Spring/Summer Catalog published in 1986, by Sears |
