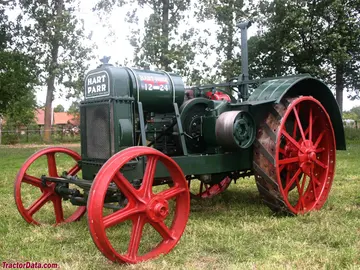

hart parr 12 24
 | 1924 - 1930
Tráctor de banda estándar | 1924 - 1930 | Tractor de banda estándar |
|---|---|---|---|
1924 - 1930 | |||
Tractor de banda estándar | |||
1924 - 1930 | |
|---|---|
Tractor de banda estándar |
Producción | |
|---|---|
Fabricante | Hart-Parr |
Tractor de banda estándar | |
Construido en Charles City, Iowa, EE. UU. | |
El precio original fue de $1,050 en 1930 | |
Motores Hart-Parr 12-24 | |
|---|---|
Hart-Parr 5.1L 2 cilindros gasolina | |
Hart-Parr 5.5L 2 cilindros gasolina | |
Detalles del motor ...  |
Transmisiones Hart-Parr 12-24 | |
|---|---|
transmisión de 2 velocidades | |
engranaje de 3 velocidades | |
Detalles de la transmisión ...  |
Hart-Parr 12-24 Potencia | |
|---|---|
Enganche (declarado) | 12 hp
8,9 kW |
Cinturón (declarado) | 24 hp
17,9 kW |
Enganche (probado) | 17.54 cv
13.1 kW |
Cinturón (probado) | 26,97 hp
20,1 kW |
Detalles de la prueba de rendimiento...  | |
Mecánico | |
|---|---|
Tracción trasera | |
Dirección manual | |
Estación de operador abierta. |
Fotos | |
|---|---|
 | |
Hart-Parr 12-24 fotos...  |
Dimensiones y Neumáticos | |
|---|---|
Peso | 4440 lbs
2013 kg |
Neumático delantero | 28x5 |
Neumático trasero | 46x10 |
Dimensiones y neumáticos completos...  | |
Números de serie 12-24 | |
|---|---|
1924 | 36001 (12-24 E) |
1925 | 36075 (12-24 E) |
1926 | 36581 (12-24E) |
1926 | 37101 (12-24 G) |
1927 | 37190 (12-24 G) |
1927 | 37901 (12-24 H) |
1928 | 38119 (12-24 H) |
1929 | 39687 (12-24 H) |
1930 | 42279 (12-24 H) |
Preguntas frecuentes: Cómo leer una tabla de números de serie. | |
