hinomoto c144
 | 1980 - 1985
Concord SeriesCompact Utility tractor | 1980 - 1985 | Concord Series | Compact Utility tractor |
|---|---|---|---|---|
1980 - 1985 | ||||
Concord Series | ||||
Compact Utility tractor | ||||
1980 - 1985 | |
|---|---|
Concord Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Hinomoto |
Compact Utility tractor | |
Built in Japan | |
Variants | |
|---|---|
C142 | 2WD |
C144 | 4WD |
Hinomoto C144 Engine | |
|---|---|
Toyosha 0.9L 3-cyl diesel | |
Fuel tank | 3.7 gal
14.0 L |
Engine details ...  | |
Hinomoto C144 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Hinomoto C144 Power | |
|---|---|
Engine (gross) | 17 hp
12.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |

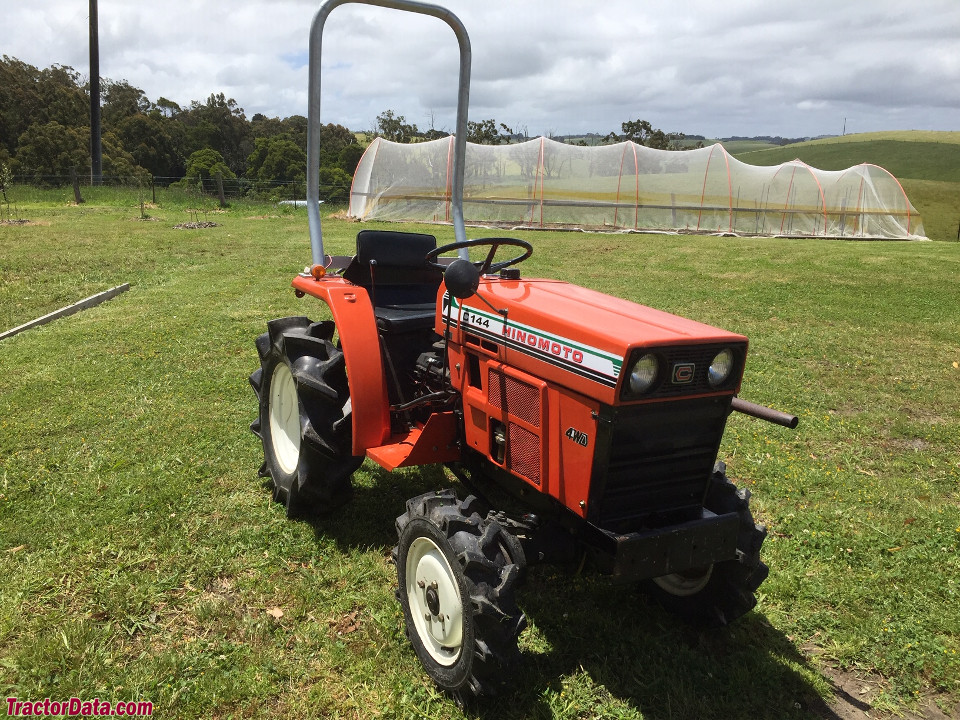

Hinomoto C144 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 571@2500 |
| 833@2500 |
Mid PTO Type | pulley |
Front PTO | independent OptOptional |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.8 inches
129 cm |
Weight | 1473 lbs
668 kg |
Front tire | 5-12 |
Rear tire | 8-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 13 |
Battery volts | 12 |
References | |
|---|---|
 | |
C142/C144 published in 1983, by Hinomoto |
