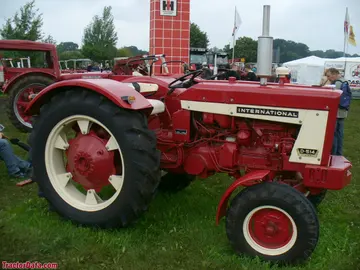

international harvester d 514
 | 1963 - 1965
Serie D Tractor de utilidad | 1963 - 1965 | Serie D | Tractor utilitario |
|---|---|---|---|---|
1963 - 1965 | ||||
Serie D | ||||
Tractor utilitario | ||||
1963 - 1965 | |
|---|---|
Serie D | |
Tractor utilitario |
Producción | |
|---|---|
Fabricante | International Harvester |
Tractor utilitario | |
Construido en Neuss, Alemania | |
Total construido | 1199 |
Motor International Harvester D-514 | |
|---|---|
International Harvester 3.1L 4 cilindros diésel | |
Tanque de combustible | 15.3 gal
57.9 L |
Detalles del motor ...  | |
Transmisiones International Harvester D-514 | |
|---|---|
transmisión de 5 velocidades | |
caja de cambios de 10 velocidades con dos velocidades | |
Detalles de la transmisión ...  |
International Harvester D-514 Potencia | |
|---|---|
Motor | 53 hp
39,5 kW |
Mecánico | |
|---|---|
Tracción trasera | |
Dirección asistida | |
Estación de operador abierta. |
Fotos | |
|---|---|
 | |
Fotos de International Harvester D-514...  |
Enganche de tractor | |
|---|---|
Tipo Trasero | II/I |
Toma de fuerza (PTO) | |
|---|---|
Tipo de PTO trasero | 540 (1,375) |
Dimensiones y Neumáticos | |
|---|---|
Distancia entre ejes | 73.1 pulgadas
185 cm |
Peso | 5556 lbs
2520 kg |
Neumático delantero | 7.50-16 |
Neumático trasero | 13-30 |
Dimensiones y neumáticos completos...  | |
Polea de Correas | |
|---|---|
Diámetro | 11 pulgadas
27 cm |
Ancho | 7.5 pulgadas
19 cm |
RPM | 1168 |
Velocidad | 3366 pies/min
1025,96 metros/min |
Referencias | |
|---|---|
 | |
D-514 Diésel publicado por International Harvester |
