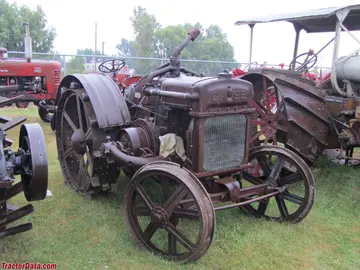

j i case 18 32
 | 1924 - 1927
Serie CrossmotorNeumático estándar | 1924 - 1927 | Serie Crossmotor | Tractor de banda estándar |
|---|---|---|---|---|
1924 - 1927 | ||||
Serie Crossmotor | ||||
Tractor de banda estándar | ||||
1924 - 1927 | |
|---|---|
Serie Crossmotor | |
Tractor de banda estándar |
Producción | |
|---|---|
Fabricante | J.I. Case |
Tractor de banda estándar | |
Construido en Racine, Wisconsin, EE. UU. | |
Motor J.I. Case 18-32 | |
|---|---|
J.I. Case 6.3L 4 cilindros queroseno | |
Detalles del motor ...  |
Transmisión J.I. Case 18-32 | |
|---|---|
transmisión de 2 velocidades | |
Detalles de la transmisión ...  |
J.I. Case 18-32 Power | |
|---|---|
Enganche (declarado) | 18 hp
13,4 kW |
Cinturón (declarado) | 32 hp
23,9 kW |
Arados | 3 |
Enganche (probado) | 24,52 hp
18,3 kW |
Cinturón (probado) | 36,73 hp
27,4 kW |
Detalles de la prueba de rendimiento...  | |
Mecánico | |
|---|---|
Tracción trasera | |
Dirección | manual |
Estación de operador abierta. | |
Fotos | |
|---|---|
 | |
J.I. Case 18-32 fotos...  |
Toma de fuerza (PTO) | |
|---|---|
Tipo de PTO trasero | 540 |
Dimensiones y Neumáticos | |
|---|---|
Peso | 6.500 libras
2948 kg |
Neumático trasero | 52x14 |
Dimensiones y neumáticos completos...  | |
Ubicación del número de serie 18-32 | |
|---|---|
 | |
Guardabarros trasero izquierdo. |
Polea de Correas | |
|---|---|
Diámetro | 16 pulgadas
40 cm |
Ancho | 7.5 pulgadas
19 cm |
RPM | 1000 |
Velocidad | 4,180 pies/min
1274,06 metros/min |
