john deere lawn tractors lr175
 | 2004 - 2010
Serie LRCortacésped de descarga trasera | 2004 - 2010 | Serie LR | Cortacésped de descarga trasera |
|---|---|---|---|---|
2004 - 2010 | ||||
Serie LR | ||||
Cortacésped de descarga trasera | ||||
2004 - 2010 | |
|---|---|
Serie LR | |
Cortacésped de descarga trasera |
Producción | |
|---|---|
Fabricante | John Deere |
Cortacésped de descarga trasera | |

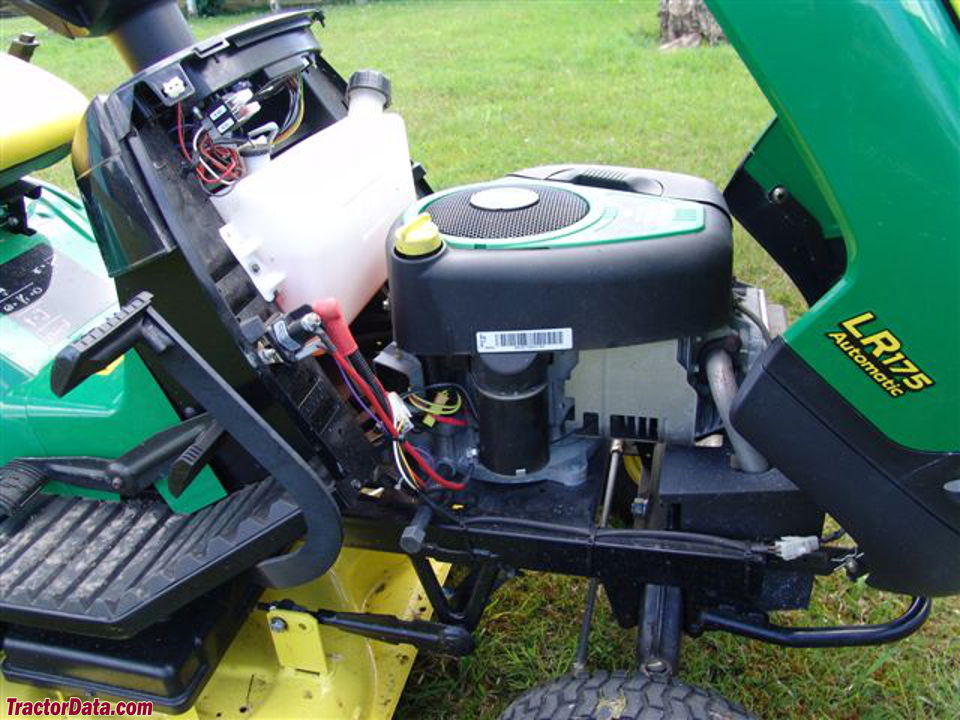

Motor John Deere LR175 | |
|---|---|
13.0KW Briggs & Stratton 502cc 1-cilindro gasolina | |
Tanque de combustible | 1.6 gal
6.1 L |
Detalles del motor ...  | |
Transmisión John Deere LR175 | |
|---|---|
hidrostática | |
Detalles de la transmisión ...  |
Mecánico | |
|---|---|
Tracción trasera | |
Dirección | manual |
Disco en frenos de transmisión | |
Estación de operador abierta. | |

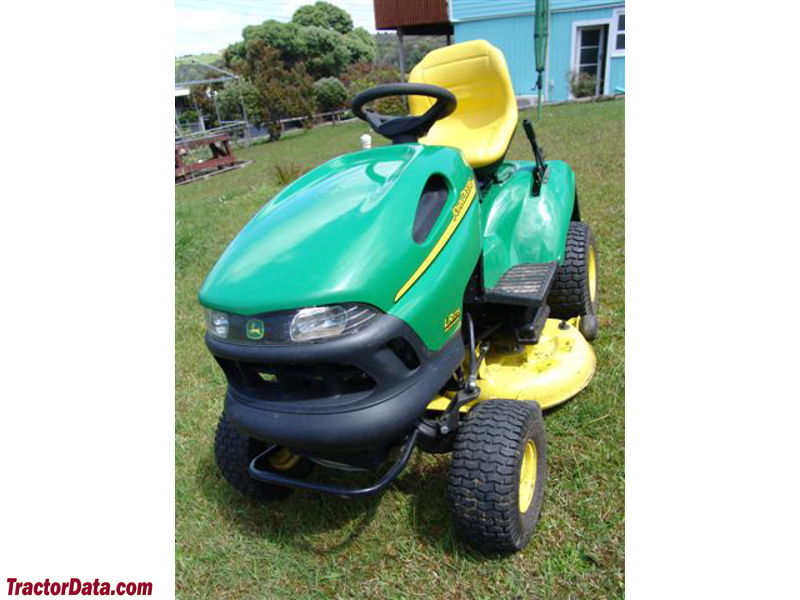

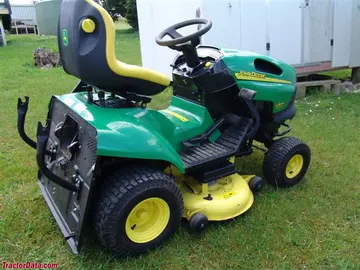

Fotos | |
|---|---|
 | |
Fotos de John Deere LR175...  |
Dimensiones y Neumáticos | |
|---|---|
Distancia entre ejes | 45,3 pulgadas
115 cm |
Peso | 518.1 lbs
235 kg |
Neumático delantero | 15x5.00-6 |
Neumático trasero | 18x8.50-8 |
Dimensiones y neumáticos completos...  | |
Adjuntos John Deere LR175 | |
|---|---|
cubierta de corte de 102 cm montada en el centro | |
Detalles de acoplamiento...  |
Eléctrica | |
|---|---|
Suelo | negativo |
Voltaje de la batería | 12 |
Capacidad de la batería AH | 24 |
Referencias | |
|---|---|
 | |
Serie CR/LR de jinetes y tractores de césped de descarga trasera publicados por John Deere |
