murray lawn tractors 39004
 | 1982 - 1988
Tractor de jardín | 1982 - 1988 | Tractor de jardín |
|---|---|---|---|
1982 - 1988 | |||
Tractor de jardín | |||
1982 - 1988 | |
|---|---|
Tractor de jardín |
Producción | |
|---|---|
Fabricante | Murray |
Tractor de jardín | |

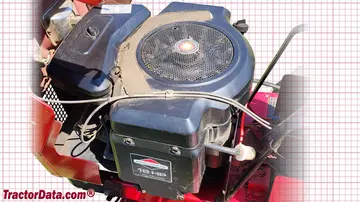

Motor Murray 39004 | |
|---|---|
18HP Briggs & Stratton 693cc 2-cilindros gasolina | |
Tanque de combustible | 3 gal
11,4 L |
Detalles del motor ...  | |

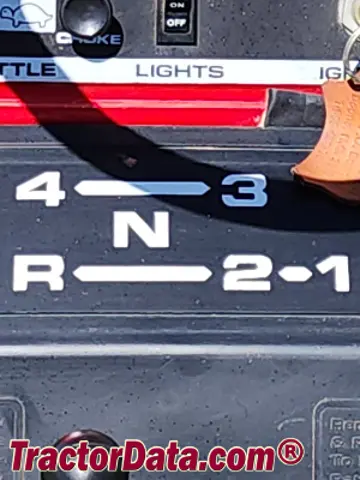

Transmisión Murray 39004 | |
|---|---|
marchas de 4 velocidades | |
Detalles de la transmisión ...  |
Mecánico | |
|---|---|
Tracción trasera | |
Dirección manual | |
Frenos de disco | |
Estación de operador abierta. |

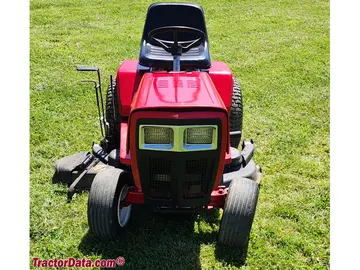

Fotos | |
|---|---|
 | |
Murray 39004 fotos...  |
Enganche de tractor | |
|---|---|
Tipo | enganche delantero Opcional |
Toma de fuerza (PTO) | |
|---|---|
PTO Intermedio | independiente |
Embrague | manual |
Dimensiones y Neumáticos | |
|---|---|
Peso | 658 lbs
298 kg |
Neumático delantero | 16x6.50 |
Neumático trasero | 23x8.50 |
Dimensiones y neumáticos completos...  | |
Adjuntos Murray 39004 | |
|---|---|
cubierta de corte central de 42" | |
quitanieves | |
cuchilla | |
Detalles de acoplamiento...  |
39004 Números de serie | |
|---|---|
1982 | 82-39004 (código de modelo) |
1983 | 83-39004 (código de modelo) |
1984 | 84-39004 (código de modelo) |
1985 | 85-39004 (código de modelo) |
1986 | 86-39004 (código de modelo) |
1987 | 87-39004 (código de modelo) |
1988 | 88-39004 (código de modelo) |
Preguntas frecuentes: Cómo leer una tabla de números de serie. | |
Eléctrica | |
|---|---|
Suelo | negativo |
Sistema de carga | alternador |
Voltaje de la batería | 12 |
Referencias | |
|---|---|
 | |
Murray Mowers para 1982 | |
Cortacéspedes Power publicados en 1986, por Murray | |
Murray Mowers '88 publicado en 1988 |
