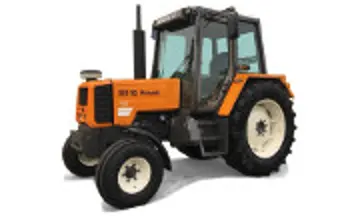

renault 103 52
 | 1991 - 1997
Tractor de cultivos en hileras | 1991 - 1997 | Tractor para cultivos en hileras |
|---|---|---|---|
1991 - 1997 | |||
Tractor para cultivos en hileras | |||
1991 - 1997 | |
|---|---|
Tractor para cultivos en hileras |
Producción | |
|---|---|
Fabricante | Renault |
Tractor para cultivos en hileras | |
Variantes | |
|---|---|
103-52 | 2WD |
103-54 | 4x4 |
Motor Renault 103-52 | |
|---|---|
MWM 4.2L 4 cilindros diésel | |
Tanque de combustible | 34,3 gal
129,8 L |
Detalles del motor ...  | |

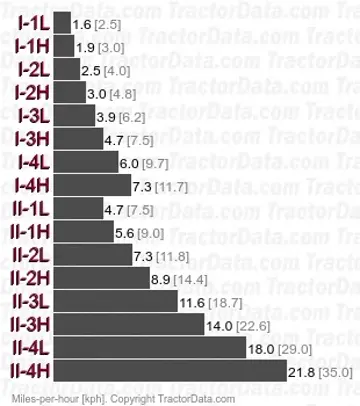

Renault 103-52 Transmisiones | |
|---|---|
16 velocidades | |
24 velocidades | |
Detalles de la transmisión ...  |
Renault 103-52 Potencia | |
|---|---|
Motor (bruto) | 102 hp
76,1 kW |
Motor (potencia neta) | 93 hp
69,4 kW |
Mecánico | |
|---|---|
Tracción trasera | |
Bloqueo diferencial | mecánico trasero |
Dirección asistida | |
Frenos de disco húmedos | |
Cabina estándar con aire acondicionado. | |
Hidráulicos | |
|---|---|
Válvulas | 2 a 4 |
Caudal de la bomba | 11 gpm
41,6 lpm |
Flujo total | 19,5 gpm
73,8 lpm |
Flujo de dirección | 7.2 gpm
27.3 lpm |
Enganche de tractor | |
|---|---|
Control | detección de tiro de enlace inferior |
Elevación trasera | 8206 libras
3722 kg |
Toma de fuerza (PTO) | |
|---|---|
Toma de fuerza trasera | independiente |
Tipo de PTO trasero | 540 (1,375) |
RPM del motor | 644@2350 |
| 1105@2350 |
Toma de fuerza delantera | independiente OptOpcional |
Tipo de Toma de Potencia Delantera | 540 (1,375) |
RPM del motor | 1036@2350 |
Dimensiones y Neumáticos | |
|---|---|
Distancia entre ejes | 99.2 pulgadas
251 cm |
Peso | 8893 a 9213 libras |
Neumático delantero | 9.00-16 |
Neumático trasero | 16.9-38 |
Dimensiones y neumáticos completos...  | |
Referencias | |
|---|---|
 | |

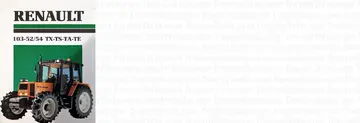

103-52/54 TX-TS-TA-TE publicado en 1991, por Renault |
