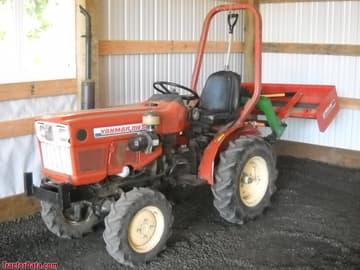

yanmar ym169
 | 1986 - 1989
Sub-Compact Utility tractor | 1986 - 1989 | Tractor utilitario subcompacto |
|---|---|---|---|
1986 - 1989 | |||
Tractor utilitario subcompacto | |||
1986 - 1989 | |
|---|---|
Tractor utilitario subcompacto |
Producción | |
|---|---|
Fabricante | Yanmar |
Tractor utilitario subcompacto | |
Variantes | |
|---|---|
YM169 | 2WD |
YM169D | 4x4 |
Motor Yanmar YM169 | |
|---|---|
Yanmar 0.9L motor diésel de 3 cilindros | |
Tanque de combustible | 4.2 gal
15.9 L |
Detalles del motor ...  | |
Transmisión Yanmar YM169 | |
|---|---|
transmisión de 6 velocidades | |
Detalles de la transmisión ...  |
Potencia Yanmar YM169 | |
|---|---|
Motor | 16 hp
11,9 kW |
PTO (declarado) | 16 hp
11,9 kW |
Mecánico | |
|---|---|
Conducir | 4x2 2WD |
| 4x4 MFWD 4WD (YM169D) |
Frenos de tambor mecánicos | |
Estación de operador abierta. | |
Fotos | |
|---|---|
 | |
Fotos de Yanmar YM169...  |
Hidráulicos | |
|---|---|
Tipo | bomba de engranajes |
Presión | 1564 psi
107,8 bar |
Flujo total | 3,43 gpm
13,0 lpm |
Enganche de tractor | |
|---|---|
Tipo Trasero | Yo |
Elevación trasera | 1,102 lbs
499 kg |
Toma de fuerza (PTO) | |
|---|---|
Tipo de PTO trasero | 540/770 |
RPM del motor | 540@2255 |
| 770@2255 |
Dimensiones y Neumáticos | |
|---|---|
Distancia entre ejes | 49,4 pulgadas
125 cm |
Peso | 1,300 lbs
589 kg |
Neumático delantero | 4.50-10 |
Neumático trasero | 8-16 (2WD) |
Dimensiones y neumáticos completos...  | |
Eléctrica | |
|---|---|
Suelo | negativo |
Amperaje de carga | 15 |
Voltaje de carga | 12 |
Voltaje de la batería | 12 |
