agco allis 9735
 | 1998 - 2001
9700 SeriesRow-Crop tractor | 1998 - 2001 | 9700 Series | Row-Crop tractor |
|---|---|---|---|---|
1998 - 2001 | ||||
9700 Series | ||||
Row-Crop tractor | ||||
1998 - 2001 | |
|---|---|
9700 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | AGCO Allis |
Row-Crop tractor | |
Original price | $67,703 (1998 QS 2WD ) |
$72,916 (1998 PS 2WD ) | |
$77,666 (1998 QS 4WD ) | |
$82,793 (1998 PS 4WD ) | |
Variants | |
|---|---|
8310 | similar White model |
AGCO Allis 9735 Engine | |
|---|---|
SisuDiesel 6.6L 6-cyl diesel | |
Fuel tank | 100 gal
378.5 L |
Engine details ...  | |

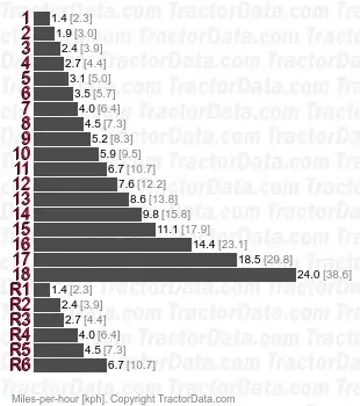

AGCO Allis 9735 Transmissions | |
|---|---|
18-speed full power shift | |
32-speed four-speed power shift | |
Transmission details ...  |
AGCO Allis 9735 Power | |
|---|---|
PTO (claimed) | 125 hp
93.2 kW |
Drawbar (tested) | 114.13 hp
85.1 kW |
PTO (tested) | 137.32 hp
102.4 kW |

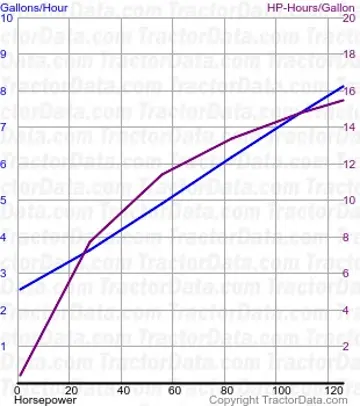

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard. |
Photos | |
|---|---|
No photos of the AGCO Allis 9735 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2900 psi
200.0 bar |
Valves | 2 |
Pump flow | 27 gpm
102.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 10400 lbs
4717 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 1000@2100 |
Dimensions & Tires | |
|---|---|
Wheelbase | 117.5 inches
298 cm |
Weight | 15000 to 16180 pounds |
Front tire | 11.00-16 |
Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
9735 Serial Numbers | |
|---|---|
Location: | Console, right side |
1998 | G001001 |
1999 | H001001 |
2000 | J01001 |
2001 | K01001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
New 8700/9700 Series Tractors published in 1997, by AGCO | |
9735 - 9745 published in 1997, by AGCO |
 | |
|---|---|
