agco lawn tractors 1313h
 | 1992 - 1994
1300 SeriesFront-mount mowerSimplicity built | 1992 - 1994 | 1300 Series | Front-mount mower | Simplicity built |
|---|---|---|---|---|---|
1992 - 1994 | |||||
1300 Series | |||||
Front-mount mower | |||||
Simplicity built | |||||
1992 - 1994 | |
|---|---|
1300 Series | |
Front-mount mower | |
Simplicity built |
Series map: 1312H1313H1316H12.0hp12.5hp16.0hp
Note: the AGCO model 1313H is the same as the Simplicity 12.5FCH42. The following data is from the 12.5FCH42 listing. |
|---|
Production | |
|---|---|
Distributor | AGCO |
Manufacturer | Simplicity |
Front-mount mower | |
Original price | $3,900 (1993 ) |
$3,950 (1994 ) | |
Variants | |
|---|---|
12.5FCH42 | similar Simplicity model |
AGCO 1313H Engine | |
|---|---|
12.5HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
AGCO 1313H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |

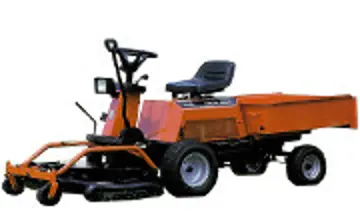

AGCO 1313H photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 633 lbs
287 kg |
Front tire | 16x6.5-8 |
Rear tire | 13x5.0-6 |
Full dimensions and tires ...  | |
AGCO 1313H attachments | |
|---|---|
42" front-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 200 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual 1300 Series (1707275) published in 1992 | |
Lawn & Garden Tractors published in 1993, by AGCO Allis | |
Lawn & Garden Tractors published in 1994, by AGCO Allis | |
1994 Price List published in 1993, by Simplicity |
 | |
|---|---|
