allis chalmers 6060
 | 1980 - 1984
6000 SeriesRow-Crop tractor | 1980 - 1984 | 6000 Series | Row-Crop tractor |
|---|---|---|---|---|
1980 - 1984 | ||||
6000 Series | ||||
Row-Crop tractor | ||||
1980 - 1984 | |
|---|---|
6000 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Row-Crop tractor | |
Built in West Allis, Wisconsin, USA | |
Total built | 4,027 |
Original price | $21,460 |
Allis Chalmers 6060 Engine | |
|---|---|
Allis Chalmers 3.3L 4-cyl diesel | |
Engine details ...  |
Allis Chalmers 6060 Transmission | |
|---|---|
8-speed partially synchronized | |
Transmission details ...  |
Allis Chalmers 6060 Power | |
|---|---|
Drawbar (tested) | 50.87 hp
37.9 kW |
PTO (tested) | 63.83 hp
47.6 kW |

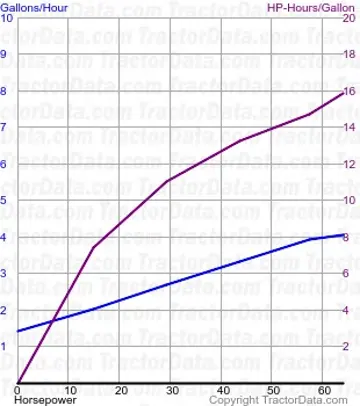

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
| 4x4 MFWD 4WD (optional) |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Four-post ROPS canopy. Cab and air-conditioning optional. | |
Photos | |
|---|---|
 | |
Allis Chalmers 6060 photos...  |
Capacity | |
|---|---|
Fuel | 32 gal
121.1 L |
Rear diff. | 37 qts
35.0 L |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 |
Pump flow | 11.4 gpm
43.1 lpm |
Total flow | 19 gpm
71.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 3,500 lbs
1587 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93 inches (2WD)
236 cm |
| 91.9 inches (4WD)
233 cm |
Weight | 6100 to 6465 pounds |
Front tire | 7.50-16 |
Rear tire | 16.9-28 |
Full dimensions and tires ...  | |
6060 Serial Numbers | |
|---|---|
Location: | Right side of engine adapter flange |
1980 | 1001 |
1981 | 1297 |
1982 | 2463 |
1983 | 3894 |
1984 | 4572 |
Final | 5027 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 72 |
Batteries | 1 |
| 2 (optional) |
Battery volts | 12 |
References | |
|---|---|
 | |
6080 - 6060 published in 1982, by Allis Chalmers |
