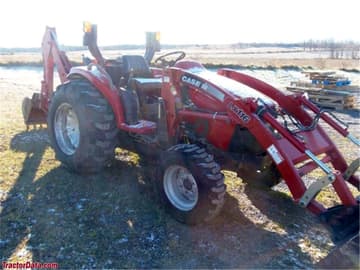

caseih d35
 | 2001 - 2006
DX SeriesCompact Utility tractor | 2001 - 2006 | DX Series | Compact Utility tractor |
|---|---|---|---|---|
2001 - 2006 | ||||
DX Series | ||||
Compact Utility tractor | ||||
2001 - 2006 | |
|---|---|
DX Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Compact Utility tractor | |
Variants | |
|---|---|
D35 | shuttle |
DX35 | hydrostatic |
TC35 | similar New Holland model |
CaseIH D35 Engine | |
|---|---|
Shibaura 1.7L 3-cyl diesel | |
Fuel tank | 13 gal
49.2 L |
Engine details ...  | |
CaseIH D35 Transmission | |
|---|---|
12-speed synchronized shuttle | |
Transmission details ...  |
CaseIH D35 Power | |
|---|---|
Engine (gross) | 35 hp
26.1 kW |
PTO (claimed) | 29.6 hp
22.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post fixed ROPS. Folding ROPS optional. Optional canopy, soft cab, and radio. |
Photos | |
|---|---|
 | |
CaseIH D35 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 or 2 |
Pump flow | 9.8 gpm
37.1 lpm |
Total flow | 14.9 gpm
56.4 lpm |
Steering flow | 5.1 gpm
19.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 2025 lbs
918 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent OptOptional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 73.5 inches
186 cm |
Weight | 2947 to 3096 pounds |
Front tire | 5.50x16 |
Rear tire | 13.6x24 |
Full dimensions and tires ...  | |
CaseIH D35 attachments | |
|---|---|
blade | |
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery CCA | 600 |
Battery volts | 12 |
References | |
|---|---|
 | |
DX Series Compact Tractors published in 2003, by CaseIH | |
DX Series Farmall Tractors published in 2004, by CaseIH | |
DX Series Farmall Tractors published in 2007, by CaseIH | |
DX Series Farmall Tractors published in 2003, by CaseIH | |
DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH |
 | |
|---|---|
