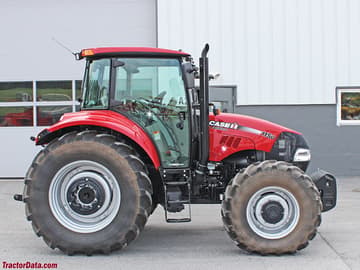

caseih farmall 115u
 | 2013 - 2016
Farmall U SeriesUtility tractor | 2013 - 2016 | Farmall U Series | Utility tractor |
|---|---|---|---|---|
2013 - 2016 | ||||
Farmall U Series | ||||
Utility tractor | ||||
2013 - 2016 | |
|---|---|
Farmall U Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Italy | |
Original price was $90,922 in 2015 | |
Variants | |
|---|---|
T5.115 | similar New Holland model |
CaseIH Farmall 115U Engine | |
|---|---|
FPT 3.4L 4-cyl diesel | |
Fuel tank | 37 gal
140.0 L |
Engine details ...  | |
CaseIH Farmall 115U Transmissions | |
|---|---|
12-speed power shuttle | |
20-speed creeper power shuttle | |
24-speed two-speed power shift | |
Transmission details ...  |
CaseIH Farmall 115U Power | |
|---|---|
Engine (gross) | 115 hp
85.8 kW |
PTO (claimed) | 98 hp
73.1 kW |
Drawbar (tested) | 73.0 hp
54.4 kW |
PTO (tested) | 104.7 hp
78.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Power steering | |
Hydraulic wet disc brakes | |
Cab with air-conditioning. | |
Photos | |
|---|---|
 | |
CaseIH Farmall 115U photos...  |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 to 3 |
Pump flow | 16.1 gpm
60.9 lpm |
| 21.1 gpmOptOptional
79.9 lpm |
Steering flow | 10 gpm
37.9 lpm |
| 11.4 gpmOptOptional
43.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | electronic draft control |
Rear lift (at ends) | adjustable lbs
0 kg |
Rear lift (at 24"/610mm) | 6393 lbs
2899 kg |
| 11949 lbsOptOptional
5420 kg |
Drawbar | Cat. II, swinging |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
| 540E OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.5 inches
234 cm |
Weight | 9370 lbs
4250 kg |
Front tire | 14.9R24 |
Rear tire | 18.4R34 |
Full dimensions and tires ...  | |
CaseIH Farmall 115U attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Battery volts | 12 |
References | |
|---|---|
 | |
Farmall U Series Utility Tractors published in 2013, by CaseIH |
 | |
|---|---|
