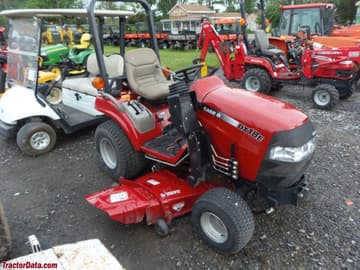

caseih farmall dx18e
 | 2004 - 2008
DXE SeriesSub-Compact Utility tractor | 2004 - 2008 | DXE Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2004 - 2008 | ||||
DXE Series | ||||
Sub-Compact Utility tractor | ||||
2004 - 2008 | |
|---|---|
DXE Series | |
Sub-Compact Utility tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Sub-Compact Utility tractor | |
Variants | |
|---|---|
TZ18DA | similar New Holland model |
CaseIH Farmall DX18E Engine | |
|---|---|
Shibaura 1.0L 3-cyl diesel | |
Fuel tank | 7.9 gal
29.9 L |
Engine details ...  | |
CaseIH Farmall DX18E Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
CaseIH Farmall DX18E Power | |
|---|---|
Engine (gross) | 18 hp
13.4 kW |
PTO (claimed) | 13.7 hp
10.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Two-post fixed ROPS. Canopy and soft cab optional. |
Photos | |
|---|---|
 | |
CaseIH Farmall DX18E photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 3.75 gpm
14.2 lpm |
Total flow | 5.5 gpm
20.8 lpm |
Steering flow | 1.85 gpm
7.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 700 lbs
317 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2200 |
Dimensions & Tires | |
|---|---|
Wheelbase | 55 inches
139 cm |
Weight | 1314 lbs
596 kg |
Full dimensions and tires ...  | |
CaseIH Farmall DX18E attachments | |
|---|---|
54" mid-mount mower deck | |
60" mid-mount mower deck | |
snowblower | |
blade | |
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
DX Series Farmall Tractors published in 2004, by CaseIH | |
DX Series Farmall Tractors published in 2003, by CaseIH | |
DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH |
 | |
|---|---|
