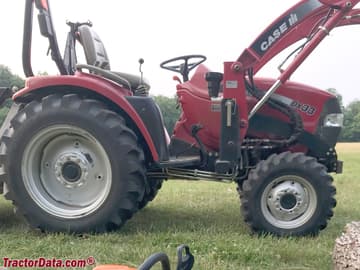

caseih farmall dx33
 | 2003 - 2005
Farmall DX SeriesCompact Utility tractor | 2003 - 2005 | Farmall DX Series | Compact Utility tractor |
|---|---|---|---|---|
2003 - 2005 | ||||
Farmall DX Series | ||||
Compact Utility tractor | ||||
2003 - 2005 | |
|---|---|
Farmall DX Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | CaseIH (a part of CNH) |
Compact Utility tractor | |
Variants | |
|---|---|
TC33DA | similar New Holland model |
CaseIH Farmall DX33 Engine | |
|---|---|
Shibaura 1.5L 3-cyl diesel | |
Fuel tank | 7.3 gal
27.6 L |
Engine details ...  | |
CaseIH Farmall DX33 Transmissions | |
|---|---|
hydrostatic | |
9-speed gear | |
Transmission details ...  |
CaseIH Farmall DX33 Power | |
|---|---|
Engine (gross) | 33 hp
24.6 kW |
Hydro PTO (claimed) | 26.9 hp
20.1 kW |
Gear PTO (claimed) | 28.6 hp
21.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Photos | |
|---|---|
 | |
CaseIH Farmall DX33 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 7.6 gpm
28.8 lpm |
Total flow | 12.7 gpm
48.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 1635 lbs
741 kg |
Power Take-off (PTO) | |
|---|---|
Gear Rear PTO | transmision |
Hydro Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Gear Mid PTO | transmision |
Hydro Mid PTO | independent |
Mid PTO Type | 2000 (1.0) |
Dimensions & Tires | |
|---|---|
Wheelbase | 63 inches
160 cm |
Weight | 2440 to 2474 pounds |
Full dimensions and tires ...  | |
CaseIH Farmall DX33 attachments | |
|---|---|
60" mid-mount mower deck | |
72" mid-mount mower deck | |
snowblower | |
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
DX Series Farmall Tractors published in 2004, by CaseIH | |
DX Series Farmall Tractors published in 2003, by CaseIH | |
DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH |
 | |
|---|---|
