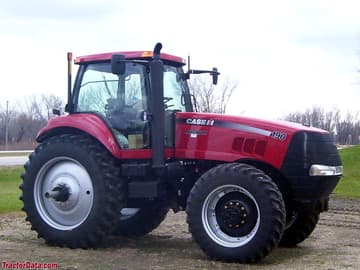

caseih magnum 190
 | 2009 - 2013
Model year 2009-20102011-2013
Magnum SeriesRow-Crop tractor | 2009 - 2013 | Model year 2009-20102011-2013 | Magnum Series | Row-Crop tractor |
|---|---|---|---|---|---|
2009 - 2013 | |||||
Model year 2009-20102011-2013 | |||||
Magnum Series | |||||
Row-Crop tractor | |||||
2009 - 2013 | |
|---|---|
Model year 2009-20102011-2013 | |
Magnum Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
CaseIH Magnum 190 Engine | |
|---|---|
FPT 6.7L 6-cyl diesel | |
Fuel tank | 118 gal
446.6 L |
Engine details ...  | |
CaseIH Magnum 190 Transmissions | |
|---|---|
18-speed full power shift | |
19-speed full power shift | |
continuously variable transmission (CVT) | |
Transmission details ...  |
CaseIH Magnum 190 Power | |
|---|---|
Engine | 190 hp
141.7 kW |
PTO (claimed) | 165 hp
123.0 kW |
PTO (tested) | 189.4 hp
141.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Surveyor cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
CaseIH Magnum 190 photos...  |
Hydraulics | |
|---|---|
Type | Pressue Flow Compensated (PFC) |
Valves | 3 to 5 |
Total flow | 39.6 gpm
149.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/III |
Rear lift | 12,787 lbs
5800 kg |
| 15,873 lbs (optional)
7199 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
| 1000 (1.75) |
Dimensions & Tires | |
|---|---|
Wheelbase | 118.3 inches
300 cm |
Weight | 19,000 lbs
8618 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 150 |
| 200 (optional) |
References | |
|---|---|
 | |
Magnum 180-210 Series Tractors published in 2009, by CaseIH | |
Magnum Series Tractors published in 2011, by CaseIH | |
Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH |
 | |
|---|---|
