caseih magnum 305
 | 2008 - 2011
Magnum SeriesRow-Crop tractor | 2008 - 2011 | Magnum Series | Row-Crop tractor |
|---|---|---|---|---|
2008 - 2011 | ||||
Magnum Series | ||||
Row-Crop tractor | ||||
2008 - 2011 | |
|---|---|
Magnum Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $221,592 in 2010 | |
CaseIH Magnum 305 Engine | |
|---|---|
CNH 8.9L 6-cyl diesel | |
Engine details ...  |
CaseIH Magnum 305 Transmissions | |
|---|---|
18-speed full powershift | |
19-speed full powershift | |
23-speed full powershift | |
Transmission details ...  |
CaseIH Magnum 305 Power | |
|---|---|
Engine | 304 hp
226.7 kW |
PTO (claimed) | 255 hp
190.2 kW |
Drawbar (tested) | 220.34 hp
164.3 kW |
PTO (tested) | 299.70 hp
223.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Differential hydraulic wet disc brakes | |
Cab standard with heat and air-conditioning. Optional luxury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls. |
Photos | |
|---|---|
 | |
CaseIH Magnum 305 photos...  |
Capacity | |
|---|---|
Fuel | 180 gal
681.3 L |
Hydraulic system | 45.5 gal
172.2 L |
Hydraulics | |
|---|---|
Type | PFC |
Capacity | 45.5 gal
172.2 L |
Valves | 3 to 5 |
Total flow | 44 gpm
166.5 lpm |
| 59 gpm (optional)
223.3 lpm |
| 75 gpm (optional Twin-Flow)
283.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/IIIN |
| IVN/III optional |
Rear lift | 14,070 lbs
6382 kg |
| 16,375 lbs (optional)
7427 kg |
| 18,900 lbs (optional)
8573 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 1000 |
| 540/1000 optional |
Dimensions & Tires | |
|---|---|
Wheelbase | 118.3 inches
300 cm |
Weight | 20630 to 21585 pounds |
Front tire | 380/80R38 |
Rear tire | 480/80R50 |
Full dimensions and tires ...  | |

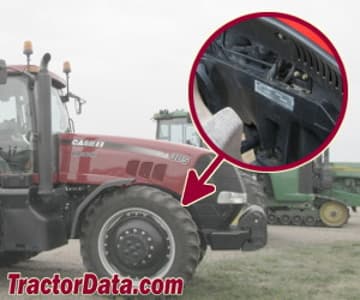

Magnum 305 Serial Number Location | |
|---|---|
 | |
Front-right tractor frame, above axle. |
References | |
|---|---|
 | |
Magnum Series Tractors published in 2007, by CaseIH |
 | |
|---|---|
