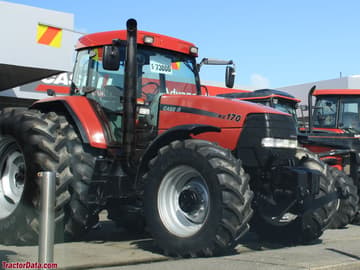

caseih mx170
 | 1998 - 2002
Maxxum Series | 1998 - 2002 | Maxxum Series |
|---|---|---|---|
1998 - 2002 | |||
Maxxum Series | |||
1998 - 2002 | |
|---|---|
Maxxum Series |
Production | |
|---|---|
Manufacturer | CaseIH |
Original price was $82,100 in 1999 | |
CaseIH MX170 Engine | |
|---|---|
Cummins/CDC 5.9L 6-cyl diesel | |
Engine details ...  |
CaseIH MX170 Transmissions | |
|---|---|
16-speed partial power shift | |
32-speed creeper | |
Transmission details ...  |
CaseIH MX170 Power | |
|---|---|
PTO (claimed) | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard. |
Photos | |
|---|---|
 | |
CaseIH MX170 photos...  |
Capacity | |
|---|---|
Fuel | 92 gal
348.2 L |
Hydraulic system | 25.5 gal
96.5 L |
Hydraulics | |
|---|---|
Type | closed center pressure-flow compensated (PFC) |
Capacity | 25.5 gal
96.5 L |
Pressure | 2950 psi
203.4 bar |
Valves | 2 to 4 |
Pump flow | 28 gpm
106.0 lpm |
Total flow | 31.6 gpm
119.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/III/IIIN |
Control | electronic lower link |
Rear lift (at 24"/610mm) | 14,737 lbs
6684 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electrically-actuated wet disc |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 112.2 inches
284 cm |
4WD Wheelbase | 116.6 inches
296 cm |
Weight | 14100 lbs
6395 kg |
Front tire | 11.00-16 |
Rear tire | 18.4R-38 |
Full dimensions and tires ...  | |
MX170 Serial Numbers | |
|---|---|
1998 | JJA0083000 |
1999 | JJA0097438 |
2000 | JJA0103445 |
2001 | JJA0108300 |
2002 | JJA0115301 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Charging volts | 12 |
Batteries | 2 |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
MX Series Tractors published in 1998, by CaseIH |
 | |
|---|---|
