caseih mx80c
 | 1998 - 2002
Utility tractor | 1998 - 2002 | Utility tractor |
|---|---|---|---|
1998 - 2002 | |||
Utility tractor | |||
1998 - 2002 | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Doncaster, England | |
Original price | $53,000 (1999) |
CaseIH MX80C Engine | |
|---|---|
Perkins 4.0L 4-cyl diesel | |
Engine details ...  |
CaseIH MX80C Transmissions | |
|---|---|
16-speed partial power shift | |
32-speed creeper | |
Transmission details ...  |
CaseIH MX80C Power | |
|---|---|
Engine | 84 hp
62.6 kW |
PTO (claimed) | 67 hp
50.0 kW |
Drawbar (tested) | 57.3 hp
42.7 kW |
PTO (tested) | 67.8 hp
50.6 kW |

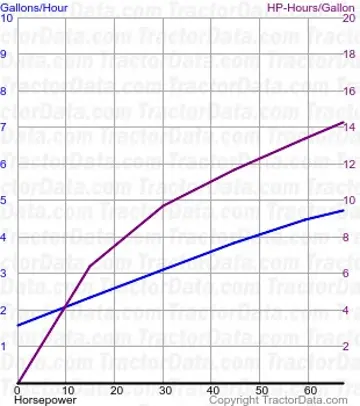

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Cab standard. | |
Photos | |
|---|---|
No photos of the CaseIH MX80C are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
Capacity | |
|---|---|
Fuel | 50 gal
189.2 L |
Hydraulic system | 17.5 gal
66.2 L |
Hydraulics | |
|---|---|
Type | closed center pressure-flow compensating (PFC) |
Capacity | 17.5 gal
66.2 L |
Pressure | 2950 psi
203.4 bar |
Valves | 2 to 4 |
Pump flow | 25 gpm
94.6 lpm |
Total flow | 28.9 gpm
109.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | electronic lower link |
Rear lift (at 24"/610mm) | 8,393 lbs
3807 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electrically-actuated wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1875 |
| 1000@2210 |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.4 inches
242 cm |
Weight | 9921 to 10580 pounds |
Front tire | 12.4R-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
MX80C Serial Numbers | |
|---|---|
Location: | Serial plate on front-left corner cab post |
1998 | JJE1050021 |
1999 | JJE1052034 |
2000 | JJE1053772 |
2001 | JJE1055506 |
2002 | JJE1056230 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Charging volts | 12 |
Batteries | 2 |
Battery CCA | 700 |
Battery volts | 12 |
References | |
|---|---|
 | |
MX Series Tractors published in 1998, by CaseIH |
 | |
|---|---|
