caseih steiger 550
 | 2011 - 2013
Four-wheel Drive (4WD) tractor | 2011 - 2013 | Four-wheel Drive (4WD) tractor |
|---|---|---|---|
2011 - 2013 | |||
Four-wheel Drive (4WD) tractor | |||
2011 - 2013 | |
|---|---|
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Variants | |
|---|---|
550 | wheeled tractor |
550QT | crawler tractor |
CaseIH Steiger 550 Engine | |
|---|---|
Iveco 12.9L 6-cyl diesel | |
Fuel tank | 455 gal
1722.2 L |
Exhaust fluid (DEF) | 62 gal
234.7 L |
Engine details ...  | |
CaseIH Steiger 550 Transmission | |
|---|---|
16-speed full power shift | |
Transmission details ...  |
CaseIH Steiger 550 Power | |
|---|---|
Engine | 550 hp
410.1 kW |
PTO (claimed) | 475 hp
354.2 kW |
Drawbar (tested) | 462.64 hp
345.0 kW |
PTO (tested) | 536.32 hp
399.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Surveyor cab standard. |

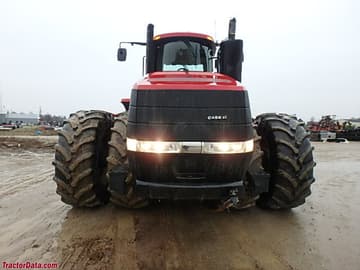

Photos | |
|---|---|
 | |
CaseIH Steiger 550 photos...  |
Hydraulics | |
|---|---|
Type | pressure flow compensating (PFC) |
Rear valves | 4 to 8 |
Pump flow | 35 gpm
132.5 lpm |
Total flow | 42 gpm
159.0 lpm |
| 56 gpm (High Flow)
212.0 lpm |
| 113 gpm (Twin Flow)
427.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | 4N |
Rear lift | 19,620 lbs
8899 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1-3/4) |
Dimensions & Tires | |
|---|---|
Wheelbase | 154 inches
391 cm |
Weight | 44,046 lbs
19979 kg |
Full dimensions and tires ...  | |
Steiger 550 Serial Numbers | |
|---|---|
Location: | Serial number plate on the front left tractor fender, near the steps. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
Batteries | 2 |
Battery CCA | 1000 |
Battery volts | 12 |
References | |
|---|---|
 | |
Steiger Series Tractors published in 2011, by CaseIH |
 | |
|---|---|
