caterpillar diesel forty
 | 1934 - 1936
Agricultural Crawler tractor | 1934 - 1936 | Agricultural Crawler tractor |
|---|---|---|---|
1934 - 1936 | |||
Agricultural Crawler tractor | |||
1934 - 1936 | |
|---|---|
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | Caterpillar |
Agricultural Crawler tractor | |
Built in Peoria, Illinois, USA | |
Variants | |
|---|---|
Forty | gas engine |
Diesel Forty | diesel engine |
Caterpillar Diesel Forty Engine | |
|---|---|
Caterpillar 10.2L 3-cyl diesel | |
Fuel tank | 45 gal
170.3 L |
Engine details ...  | |
Caterpillar Diesel Forty Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Caterpillar Diesel Forty Power | |
|---|---|
Drawbar (tested) | 50.44 hp
37.6 kW |
Belt (tested) | 56.05 hp
41.8 kW |

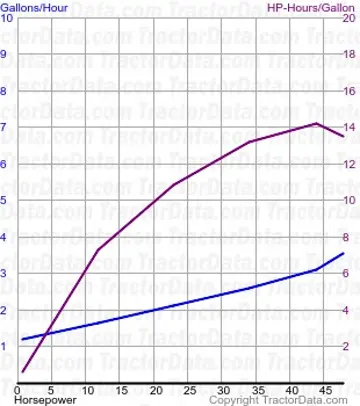

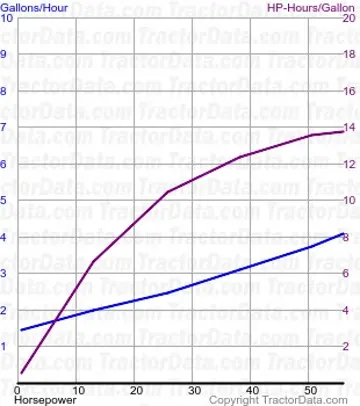

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station | |
Photos | |
|---|---|
No photos of the Caterpillar Diesel Forty are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
Dimensions & Tracks | |
|---|---|
Weight | 15642 lbs
7095 kg |
16-inch tracks | |
Full dimensions and tracks ...  | |
Diesel Forty Serial Numbers | |
|---|---|
1934 | 3G1 |
1935 | 3G335 |
1936 | 3G1957 |
Final | 3G1971 |
FAQ: How to read a serial number table. | |
 | |
|---|---|
