caterpillar rd8
 | 1935 - 1936
Agricultural Crawler tractor | 1935 - 1936 | Agricultural Crawler tractor |
|---|---|---|---|
1935 - 1936 | |||
Agricultural Crawler tractor | |||
1935 - 1936 | |
|---|---|
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | Caterpillar |
Agricultural Crawler tractor | |
Built in Peoria, Illinois, USA | |
Caterpillar RD8 Engine | |
|---|---|
Caterpillar 20.4L 6-cyl diesel | |
Engine details ...  |
Caterpillar RD8 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Caterpillar RD8 Power | |
|---|---|
Drawbar (tested) | 103.95 hp
77.5 kW |
Belt (tested) | 118.29 hp
88.2 kW |

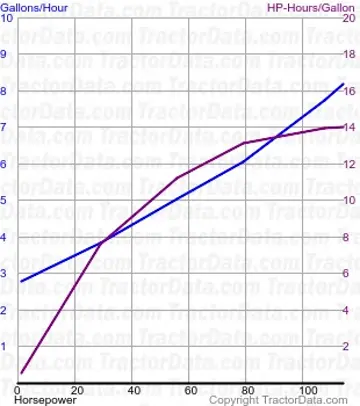

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Photos | |
|---|---|
 | |
Caterpillar RD8 photos...  |
Dimensions & Tracks | |
|---|---|
Weight | 33500 lbs
15195 kg |
20-inch tracks | |
Full dimensions and tracks ...  | |
RD8 Serial Numbers | |
|---|---|
1935 | 5E8001 |
1935 | 1H1 |
1936 | 1H247 |
1937 | 1H1497 |
FAQ: How to read a serial number table. | |
 | |
|---|---|
