challenger mt545
 | 2002 - 2003
MT500 SeriesRow-Crop tractor | 2002 - 2003 | MT500 Series | Row-Crop tractor |
|---|---|---|---|---|
2002 - 2003 | ||||
MT500 Series | ||||
Row-Crop tractor | ||||
2002 - 2003 | |
|---|---|
MT500 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Challenger (a part of AGCO) |
Row-Crop tractor | |
Built in Beauvais, France | |
Variants | |
|---|---|
6290 | similar Massey Ferguson model |
Challenger MT545 Engine | |
|---|---|
Caterpillar 6.0L 6-cyl diesel | |
Cab Fuel tank | 59.4 gal
224.8 L |
ROPS Fuel tank | 42.3 gal
160.1 L |
Engine details ...  | |
Challenger MT545 Transmission | |
|---|---|
32-speed partial power shift | |
Transmission details ...  |
Challenger MT545 Power | |
|---|---|
PTO (claimed) | 120 hp
89.5 kW |
Drawbar (tested) | 113.6 hp
84.7 kW |
PTO (tested) | 120.5 hp
89.9 kW |

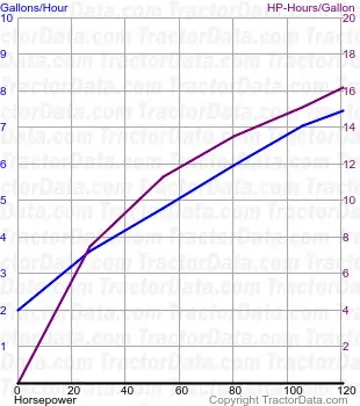

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensated (PFC) |
Pressure | 2900 psi
200.0 bar |
Valves | 2 to 4 |
Total flow | 28 gpm
106.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 9000 lbs
4082 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 108.3 inches
275 cm |
Weight | 10082 to 11437 pounds |
Front tire | 11.00-16 |
Rear tire | 208R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
References | |
|---|---|
 | |
Challenger MT500/MT600 published in 2002, by AGCO |
