challenger mt855b
 | 2005 - 2008
MT800B SeriesAgricultural Crawler tractor | 2005 - 2008 | MT800B Series | Agricultural Crawler tractor |
|---|---|---|---|---|
2005 - 2008 | ||||
MT800B Series | ||||
Agricultural Crawler tractor | ||||
2005 - 2008 | |
|---|---|
MT800B Series | |
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | Challenger (a part of AGCO) |
Agricultural Crawler tractor | |
Built in Jackson, Minnesota, USA | |
Challenger MT855B Engine | |
|---|---|
Caterpillar 15.2L 6-cyl diesel | |
Fuel tank | 305 gal
1154.4 L |
| 330 galOptOptional
1249.0 L |
Engine details ...  | |
Challenger MT855B Transmission | |
|---|---|
16-speed full power shift | |
Transmission details ...  |
Challenger MT855B Power | |
|---|---|
Engine (gross) | 460 hp
343.0 kW |
PTO (claimed) | 385 hp
287.1 kW |
Drawbar (tested) | 358.14 hp
267.1 kW |
PTO (tested) | 465.26 hp
346.9 kW |

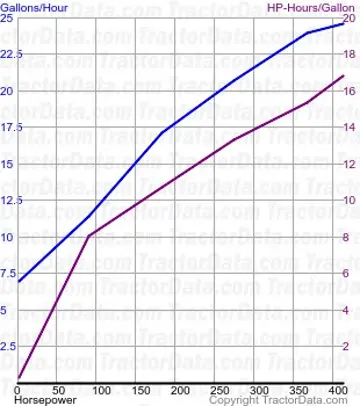

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center PFC |
Pressure | 2900 psi
200.0 bar |
Rear valves | 4 to 6 |
Total flow | 43.5 gpm
164.6 lpm |
| 59 gpmOptOptional
223.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/IVN |
Rear lift | 19,500 lbs
8845 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Dimensions & Tracks | |
|---|---|
Wheelbase | 118 inches
299 cm |
Weight | 41000 lbs
18597 kg |
27.5-inch tracks | |
Full dimensions and tracks ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 185 |
Batteries | 4 |
Battery CCA | 1000 |
Battery volts | 12 |
References | |
|---|---|
 | |
Challenger MT800B Series published in 2005, by AGCO |
