challenger mt865
 | 2002 - 2004
MT800 SeriesAgricultural Crawler tractor | 2002 - 2004 | MT800 Series | Agricultural Crawler tractor |
|---|---|---|---|---|
2002 - 2004 | ||||
MT800 Series | ||||
Agricultural Crawler tractor | ||||
2002 - 2004 | |
|---|---|
MT800 Series | |
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | Challenger (a part of AGCO) |
Agricultural Crawler tractor | |
Built in USA | |
Challenger MT865 Engine | |
|---|---|
Caterpillar 15.8L 6-cyl diesel | |
Engine details ...  |
Challenger MT865 Transmission | |
|---|---|
16-speed full power shift | |
Transmission details ...  |
Challenger MT865 Power | |
|---|---|
Engine (gross) | 500 hp
372.9 kW |
PTO (claimed) | 416 hp
310.2 kW |
Drawbar (tested) | 378.75 hp
282.4 kW |
PTO (tested) | 523.60 hp
390.4 kW |

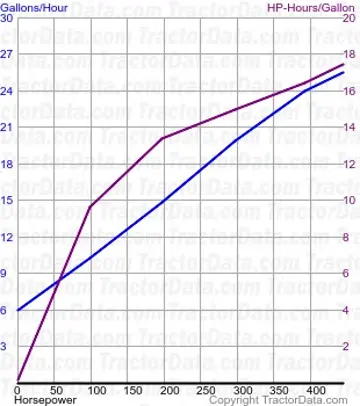

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 330 gal
1249.0 L |
Hydraulic system | 70 gal
264.9 L |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Capacity | 70 gal
264.9 L |
Pressure | 2900 psi
200.0 bar |
Rear valves | 4 to 6 |
Pump flow | 43.5 gpm
164.6 lpm |
| 59 gpmOptOptional
223.3 lpm |
SCV flow | 30 gpm
113.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | IVN |
Rear lift | 19500 lbs
8845 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Dimensions & Tracks | |
|---|---|
Wheelbase | 118.1 inches
299 cm |
Weight | 41000 lbs
18597 kg |
18-inch tracks | |
Full dimensions and tracks ...  | |
MT865 Serial Numbers | |
|---|---|
Location: | Serial number plate on the left side of the tractor frame. |
2002 | BDS20000 |
2003 | BDS30000 |
2004 | BDS40000 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 160 |
Batteries | 4 |
Battery volts | 12 |
References | |
|---|---|
 | |
MT800 Series published in 2002, by AGCO |
